| Place of Origin: | China |
| Brand Name: | Chuangyin |
| Certification: | Type test report |
| Model Number: | CYSESQJ-15/630-25-50 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton packing for one sets, one set including three piece with Components |
| Delivery Time: | Within 7 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000Pcs/week |
| Use: | Protect Apparatus | Class Voltage: | 24kv |
|---|---|---|---|
| Color: | Black | Material: | Wrench Stud |
| Type: | C | BIL: | 95KV |
| High Light: | coupling connector,straight connector |
||

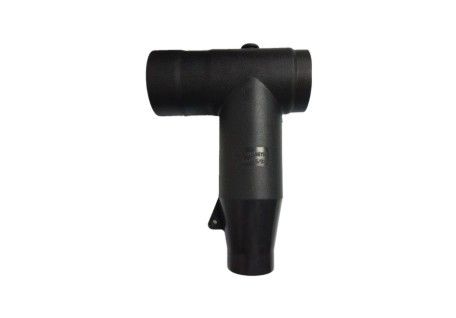

CYSESQJ-15/630-25-50 IEC 630A 15kv Separable Connectors Tee connector easy to installation
Chuangyin® Tee Connector is widely applicable for terminating polymeric insulated cable to dead front apparatus such as transformers, switchgear, and other equipment in 630 A power network.
The interface designed to comply with EN 50180 / EN 50181 630 A interface type C and HD 629.1, IEC 60502.4, GB/T 12706.4 etc.
Construction
1. Stud 2. Insulating Layer
3. Insulating Plug 4. Semi-conducting Insert
5. Adapter 6. Lug
Technical Data
| Item | Parameters |
| Voltage Class | 15 kV |
| Rated Current | 630 A |
| AC Withstand Voltage 5min | 39 kV |
| DC Withstand Voltage 15min | 35 kV |
| Partial Discharge | 15 kV, ≤10 pC |
| BIL | 95 kV |
| Cable Section | 25-400 mm2 |
| Interface Type | C |
Kit Contents
| Tee Connector | Wipers |
| Insulating Plug | Silicone Grease |
| End Cap | Installation Tool |
| Adapter | Accessories |
| Lug | Installation Instruction |
| Stud | Certificate |
Ordering Instructions
| Part Number | Cable Section (mm²) | Diameter over Insulation (mm) | Code |
| CYSEQJ-15/630-25-50 | 25-50 | 16-20 | A |
| CYSEQJ-15/630-70-95 | 70-95 | 20-23.1 | B |
| CYSEQJ-15/630-120-150 | 120-150 | 23-26.1 | C |
| CYSEQJ-15/630-185-240 | 185-240 | 25.8-30 | D |
| CYSEQJ-15/630-300 | 300 | 30.4-32.3 | E |
| CYSEQJ-15/630-400 | 400 | 33-35.4 | F |
