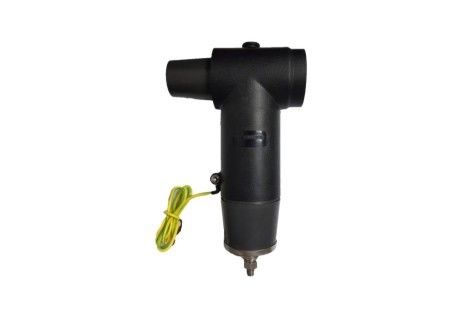

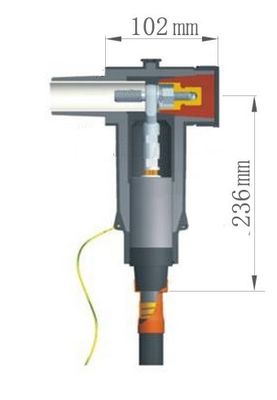

CYSESHJ-15/630-25-50 Separable Connectors 630A 15kv Unscreened Coupling Connectors
Chuangyin® Coupling Connector is widely applicable for connecting proper bushings or plugs, terminating polymeric insulated cable to dead front apparatus such as transformers, switchgear, and other equipment in 630 A power network.
Cable section: 25 to 630mm2
The interface designed to comply with EN 50180 / EN 50181 630 A interface type C and HD 629.1, IEC 60502.4, GB/T 12706.4 etc.
Technical Data
Item | Parameters | ||
Voltage Class | 15 kV | 24 kV | 35 kV |
Rated Current | 630 A | 630 A | 630 A |
AC Withstand Voltage 5min | 39 kV | 54 kV | 117 kV |
DC Withstand Voltage 15min | 35 kV | 48 kV | 104 kV |
Partial Discharge | 15 kV, ≤10 pC | 20 kV, ≤10pC | 45 kV, ≤10 pC |
BIL | 95 kV | 125 kV | 200 kV |
Screen Resistance | ≤ 5000 Ω | ≤ 5000 Ω | ≤ 5000 Ω |
Cable Section | 25-400 mm2 | 35-500 mm2 | 50-630 mm2 |
Interface Type | C | C | C |
Kit Contents
Coupling Connector | Wipers |
Accesories | Silicone Grease |
Probe | Installation Tool |
Adapter | Certificate |
Lug | Installation Instruction |
Stud |
Ordering Instructions
Part Number | Cable Section (mm2) | Diameter over Insulation (mm) | Code |
CYS-E(S)HJ(01)-15/630-25-50 | 25-50 | 16-20 | A |
CYS-E(S)HJ(01)-15/630-70-95 | 70-95 | 20-23.1 | B |
CYS-E(S)HJ(01)-15/630-120-150 | 120-150 | 23-26.1 | C |
CYS-E(S)HJ(01)-15/630-185-240 | 185-240 | 25.8-30 | D |
CYS-E(S)HJ(01)-15/630-300 | 300 | 30.4-32.3 | E |
CYS-E(S)HJ(01)-15/630-400 | 400 | 33-35.4 | F |
CYS-E(S)HJ(01)-24/630-35-50 | 35-50 | 18-22 | A |
CYS-E(S)HJ(01)-24/630-70-95 | 70-95 | 22-25.1 | B |
CYS-E(S)HJ(01)-24/630-120-150 | 120-150 | 25-28.1 | C |
CYS-E(S)HJ(01)-24/630-185-240 | 185-240 | 27.8-30 | D |
CYS-E(S)HJ(01)-24/630-300 | 300 | 32.4-34.4 | E |
CYS-E(S)HJ(01)-24/630-400 | 400 | 35-37.4 | F |
CYS-E(S)HJ(01)-24/630-500 | 500 | 38.4-40.3 | G |
CYS-E(S)HJ(01)-35/630-50-70 | 50-70 | 30-33.4 | A |
CYS-E(S)HJ(01)-35/630-95-120 | 95-120 | 33.6-36.6 | B |
CYS-E(S)HJ(01)-35/630-150-185 | 150-185 | 36.4-40 | C |
CYS-E(S)HJ(01)-35/630-240-300 | 240-300 | 40-44.3 | D |
CYS-E(S)HJ(01)-35/630-400-500 | 400-500 | 45-50.3 | E |
