JSZW 2A-12R MV Voltage Transformer 12kV Three-Phase Voltage Transformer High Reliability

JSZW 2A-12R MV Voltage Transformer 12kV Three-Phase Voltage Transformer High Reliability

  • JSZW 2A-12R MV Voltage Transformer 12kV Three-Phase Voltage Transformer High Reliability
  • JSZW 2A-12R MV Voltage Transformer 12kV Three-Phase Voltage Transformer High Reliability
JSZW 2A-12R MV Voltage Transformer 12kV Three-Phase Voltage Transformer High Reliability
Product Details:
Place of Origin: Shenzhen
Brand Name: Chuangyin
Certification: Kema,CE,SGS,TUV
Model Number: JSZW 2A-12R
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: Carton packing for one sets, one set including three piece with Components
Delivery Time: Within 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 36,000,00pcs per year
Contact Now
Detailed Product Description
Type: Epoxy Resin Feature: Maitenance Free
Construction: Full-enclosed Rated Primary Voltage: 11/√3
Rated Insulation Level: 12/28/75KV
High Light:

medium voltage transformer

,

single phase voltage transformer

JSZW 2A-12R MV Voltage Transformer 12kV Three-Phase Voltage Transformer High Reliability


1.Product Introduction:

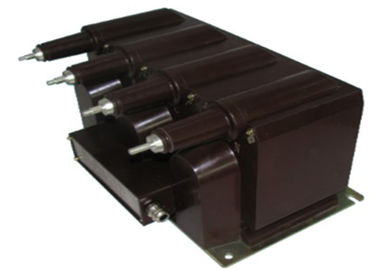

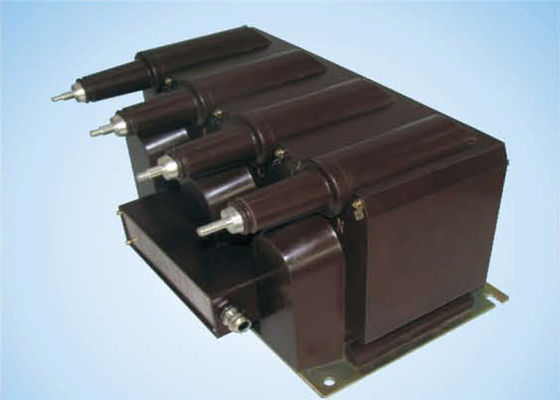

Voltage transformer with fully enclosed cast insulation structure, the primary and secondary windings and toroidal core all encapsulated in epoxy casting body, using elbow-type plug to increase the outer insulation creepage distance and resistance contamination and moisture performance. It is used indoor for measuring voltage, electric energy and protective relaying in three-phase AC circuit with the frequency 50Hz or 60Hz and highest voltage for equipment 12M
The primary cone accords with IEEE 386-2006 figure 7.



Technical Data



1. Installation site: Indoor
2. Rated frequency: 50/60Hz
3. Load power factor: coscD=0.8 (lagging)
4. Technical standard accords with: IEC 60044-2
                                                         IEC 61869-1 &3

Specification:



Item Specification Unit Data
1 Um kV 12
2 Rated Insulation Level kV 12/28/75




Type

Rated primary

voltage (kV)

Rated secondary voltage (kV) Accuracy classes combination

Rated output

(VA)

Thermal limiting current

(VA)

Rated insulation level(kV)
JSZW 12-12R 11/√3



0.11/√3/0.11/3

0.2/6P 25 1200 12/28/75
0.5/6P 50
1/6P 80



0.11√3/0.11√3/0.11/3





0.2/0.2/6P 10/10
0.2/0.5/6P 30/45/100
0.5/0.5/6P
90/90/100 900/900

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.



Outline drawing


JSZW 2A-12R MV Voltage Transformer 12kV Three-Phase Voltage Transformer High Reliability 0
