12kV Medium Voltage Transformer PT Epoxy Resin Type IEEE Bushing

12kV Medium Voltage Transformer PT Epoxy Resin Type IEEE Bushing

  • 12kV  Medium Voltage Transformer  PT Epoxy Resin Type  IEEE Bushing
  • 12kV  Medium Voltage Transformer  PT Epoxy Resin Type  IEEE Bushing
  • 12kV  Medium Voltage Transformer  PT Epoxy Resin Type  IEEE Bushing
  • 12kV  Medium Voltage Transformer  PT Epoxy Resin Type  IEEE Bushing
  • 12kV  Medium Voltage Transformer  PT Epoxy Resin Type  IEEE Bushing
12kV  Medium Voltage Transformer  PT Epoxy Resin Type  IEEE Bushing
Product Details:
Place of Origin: Shenzhen
Brand Name: Chuangyin
Certification: Kema,CE,SGS,TUV
Model Number: JSZY18-24RJ
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: Carton packing for one sets, one set including three piece with Components
Delivery Time: Within 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 36,000,00pcs per year
Contact Now
Detailed Product Description
Construction: Fully Enclosed Casting Insulation Highest Voltage For Equipment: 24KV
Termal Limit Output: 2000VA Rated Primary Voltage: 22√3KV
Technical Standard: 0.2;0.5;1;0.2/0.2;0.2/0.5;0.2/6P;0.5/6P Rated Insulation Level: 24/50/125KV
Type: Three-Phase Standard: IEEE
High Light:

medium voltage transformer

,

medium voltage potential transformer

12kV Medium Voltage Transformer PT Epoxy Resin Type IEEE Bushing Three-Phase Autotransformer Type Measuring​


1. Product Introduction:

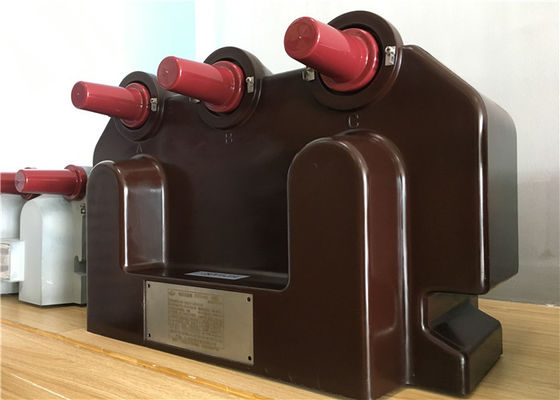

JSZY18-24RJ voltage transformer, is fully enclosed casting insulation structure, the primary winding, secondary winding and the annular core all coating in the epoxy resin casting, The product adds elbow type plug part, improving the filth and moisture resistance, is widely used indoor for measuring current, electric energy and protective relaying in the isolated neutral system with the frequency 50-60Hz and highest voltage for equipment 24 kV.



Main technical parameter

1. Rated primary voltage: 20/√3 KV or 22/√3 KV

2. Rated secondary voltage:100/√3, 100/√3/100/√3, 100/√3/220

3. Rated voltage of residual voltage windings:100/ 3V ,110/ 3V, 115/ 3V, 120/ 3V

4. Burden power factor: cosΦ=0.8(lagging)

5. Standards: IEC60044-2.2003 or IEC61869-1&3

Other technical parameters pls see as follow:

Type

Rated primary

voltage (kV)

Rated secondary voltage (kV) Accuracy classes combination

Rated output

(VA)

Thermal limiting current

(VA)

Rated insulation level(kV)
JSZY18-24RJ

20/√3

22/√3

0.1/√3 0.2 40 2000



24/50/125

0.5 80
1 100
0.1/√3/0.1/√3 0.2/0.2 20/20 500/500
0.2/0.5 20/30
0.1/√3/0.22 0.2/6P(3P) 50/800 800/2000
0.5/6P(3P) 50/800

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.





Outline drawing




12kV  Medium Voltage Transformer  PT Epoxy Resin Type  IEEE Bushing 0
