| Place of Origin: | ShenZhen |
| Brand Name: | Chuangyin |
| Certification: | Kema,CE,SGS,TUV |
| Model Number: | LZZB-36 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Carton packing for one sets, one set including three piece with Components |
| Delivery Time: | Within 7 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 36,000,00pcs per year |
| Type: | Epoxy Resin | Rated Insulation Level: | 36KV |
|---|---|---|---|
| Installation Site: | Outdoor | Rated Secondary Current: | 5A |
| Package: | 1/pcs/Plywood =620*420*870mm | Net Weight: | Three Secondary Windings, Each Winding Can Have Tap |
| High Light: | single phase current transformer,medium voltage instrument transformers |
||

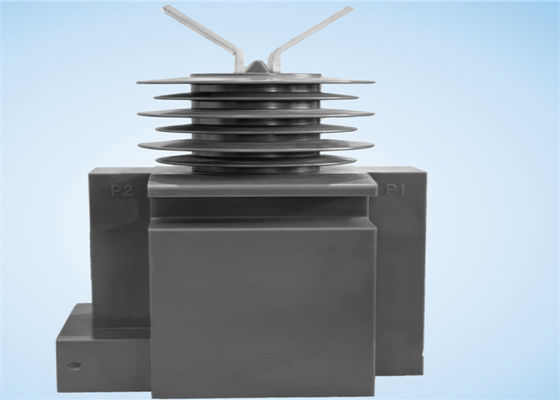

36kV Medium Current Transformer Outdoor Single-Phase Epoxy Resin Type
1.Product Introduction:
Adopts outdoor epoxy resin casting and belongs to support type full-closed structure. The product can be made four secondary windings,each winding can be tapped to realize three ratios with large external insulation creep distance, withstanding dirtiness and ultraviolet radiation.
Be suitable for matching with 36kV (Up to 40.5 kV) outdoor for measuring electric energy, current and protective relaying.
Technical Data
1. Rated insulation level: 36/70/170 kV
2, Rated frequency:50/60Hz
3, Installation site:Outdoor
4, Technical standard:IEC 60044-1
(IEC 61869-1&2)
Specification:
| Rated current ratio (A) | Accuracy classes combination |
Rated output (VA) |
FS | ALF | Rated short-time thermal current (kA/S) | Rated dynamic current ( kA) | ||
| Measuring | Protective | |||||||
| 0.2(S) | 0.5 | 10P | ||||||
| 50-75-100/5 |
0.2(S)/0.5/10P 0.2/0.5/10P 0.2S/0.5/10P/10P 0.2/0.5/10P/10P |
20 25 |
25 |
30 50 |
5 (10) |
10 15 20 |
150I1n | 375I1n |
| 75-100-150/5 | 22.5 | 80 | ||||||
| 100-200-300/5 | 31.5 | 100 | ||||||
| 200-300-600/5 | 45 | 100 | ||||||
| 200-400-600/5 | 45 | 100 | ||||||
| 300-400-600/5 | 63 | 130 | ||||||
| 400-600-800/5 | 63 | 130 | ||||||
| 500-800-1000/5 | 80 | 160 | ||||||
| 600-800-1000/5 | 80 | 160 | ||||||
| 1000-1250-1600 | 100 | 160 | ||||||
| 1000-1500-2000 | 100 | 160 | ||||||
Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.
Outline drawing
