| Place of Origin: | ShenZhen |
| Brand Name: | Chuangyin |
| Certification: | Test Report |
| Model Number: | LMZW4(5)-0.72 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Carton packing for one sets, one set including three piece with Components |
| Delivery Time: | Within 7 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 36,000,00pcs per year |
| Application: | AC Line | Rated Frequency: | 50/60HZ |
|---|---|---|---|
| Package: | 80pcs/Plywood=880*860*820mm | Installation Attitude: | 2000m |
| Rated Insulation Level: | 0.72/3/-KV | Rated Primary Current: | Up To 1500A |
| High Light: | busbar type current transformer,bushing current transformer |
||

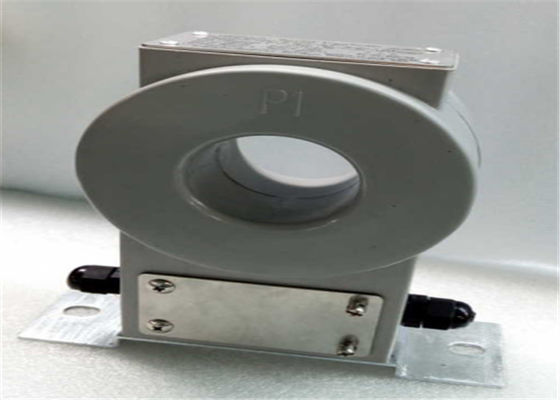

Outdoor Current Transformer LMZW3-0.72 Epoxy Resin AC 5A /1A
1. Introduction:
The current transformer is busbar type casting insulated outdoor type product. It is used for measuring current, electricity power and relay protection in the AC line or rated frequency 50Hz or 60Hz, rated voltage 600V and below.
The current transformer can be executed according to the standard IEC 61869-1:2007 and IEC 61869-2:2012. Or IEC60044-1
Technical Data
Rated insulation level: 0.72/3/10kV
Rated primary current: up to 1500A
Rated secondary current: 5A or 1A
Installation Altitude : 2000m
| Model | Rated primary current(A) |
Window size (mm) |
Rated output(A) | Accuracy Class |
| LMZW4-0.72 | 200 | Φ75 | 5 | 0.5 |
| 300 | Φ75 | 5 | 0.5 | |
| 400 | Φ75 | 5 | 0.5 | |
| 500 | Φ75 | 5 | 0.5 | |
| 600 | Φ75 | 5 | 0.5 |
| Model | Rated primary current(A) |
Window size (mm) |
Rated output(A) | Accuracy Class |
| LMZW5-0.72 | 400 | Φ100 | 5 | 0.5 |
| 500 | Φ100 | 5 | 0.5 | |
| 600 | Φ100 | 5 | 0.5 | |
| 800 | Φ100 | 5 | 0.5 | |
| 1000 | Φ100 | 5 | 0.5 | |
| 1200 | Φ100 | 5 | 0.5 | |
| 1500 | Φ100 | 5 | 0.5 |
Note: double ratio optional
4. Outline Drawing:
Contact Person: Mr. Dieky Lin
Tel: +86 138 2379 0397
Fax: 86-0755-8600-0614
