| Place of Origin: | China |
| Brand Name: | Shenzhen Chuangyin Co., Lt |
| Certification: | KEMA/type test report |
| Model Number: | JDZW1-17.5，24 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Negetiable |
| Packaging Details: | Plywood |
| Delivery Time: | 8days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 36,000.00pcs per year |
| Insulation Type: | Dry / Epoxy Cast | Voltage: | 17.5,24kV |
|---|---|---|---|
| Application: | Outdoor | Properties: | Single Phase |
| Applied Standard: | IEC 61869-1 &3 (IEC 60044-2) | Rated Insulation Level: | 17.5/38/9kV5 ; 24/50/125kV |
| High Light: | medium voltage transformer,medium voltage potential transformer |
||

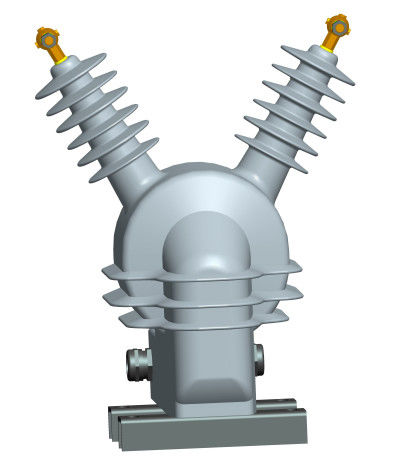

17.5kV outdoor MV PT epoxy resin single phase double-pole for measuring and protective 50/60 Hz
Chuangyin Voltage Transformer-JDZW1-17.5,24
Description:
Epoxy resin casting and full-closed construction, Double-pole for phase-phase connection, It is widely used for measuring voltage, electric energy and auxiliary power in the sing-phase or three phase power system with the frequency 50Hz or 60Hz and highest voltage for equipment 36kV
Basic technical data:
1. Installation: Outdoor
2. Insulation type: Dry, Epoxy cast
3. Highest voltage for equipment Um (r.m.s.):17.5kV, 24kV
4. Rated power-frequency withstand voltage (r.m.s.):38kV, 50kV
5. Rated lightning impulse withstand voltage (peak):95kV, 125kV
5. Rated frequency: 50Hz / 60Hz
6. Applied standard: IEC 61869-1 &3 (IEC 60044-2)
Specification:
|
Rated Primary Voltage (kV) |
Rated Secondary Voltage (V) |
Accuracy classes combination | Rated Burden (VA) | Thermal limiting Output (VA) |
Rated Insulation Level (kV) |
|
|
13.8 20 22 24 |
100 110 115 120 |
220 240 |
0.2 | 25 |
300 500 |
17.5/38/95 24/50/125 |
| 0.5 | 50 | |||||
| 1 | 100 | |||||
| 3 | 200 | |||||
| 5 | 500 | |||||
