| Insulation Type: | Dry /Epoxy Cast | Voltage: | 36kV |
|---|---|---|---|
| Application: | Outdoor | Properties: | Single Fase |
| Applied Standard: | IEC 61869-1,-2,-3&4 | Rated Insulation Level: | 36/70/170kV |
| Rated Frequency: | 50/60 Hz | ||
| High Light: | medium voltage transformer,medium voltage potential transformer |
||

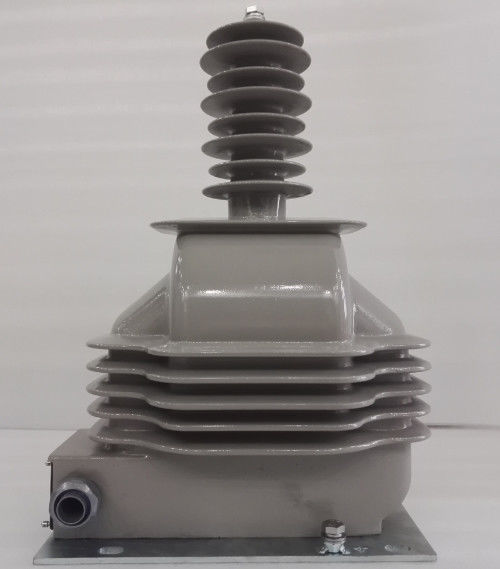

36kV outdoor MV PT epoxy resin single-pole for measuring and protective 50/60 Hz
Chuangyin Voltage Transformer-JDZXW5-36
Description:
Epoxy resin casting and full-closed construction, single-pole for phase to ground connection, It is widely used for measuring voltage, electric energy and protective relaying in the sing-phase or three phase power system with the frequency 50Hz or 60Hz and highest voltage for equipment 36kV.
Basic technical data:
1. Installation: Outdoor
2. Insulation type: Dry, Epoxy cast
3. Highest voltage for equipment Um (r.m.s.) 36kV
4. Rated power-frequency withstand (induced) voltage (r.m.s.): 70kV
5. Rated lightning impulse withstand voltage (peak): 170kV
5. Rated frequency: 50Hz / 60Hz
6. Applied standard: IEC 61869-1,-2,-3&4
Specification:
|
Rated Primary Voltage (kV) |
Rated Secondary Voltage (V) |
Accuracy classes combination |
Rated Burden (VA) |
Thermal limiting Output (VA) |
Rated Insulation Level (kV) |
|
| Measuring | Protective | |||||
|
33/√3 35/√3 |
100/√3 110/√3 |
100/3 110/3 |
0.2 | 20 | 500 | 36/70/170 |
| 0.5 | 40 | |||||
| 1 | 80 | |||||
| 0.2/3P | 20/100 | 300 | ||||
| 0.5/3P | 40/100 | |||||
