17.5kV Pad Mounted Metering Cabinet PMY9-17.5 Three Phase

Product Details:

Place of Origin:	China
Brand Name:	Chuangyin
Model Number:	JLSZXW9-17.5(PMY9-17.5)

Payment & Shipping Terms:

Packaging Details:	Wooden frame and stretch film
Delivery Time:	25-35 working days

Contact Now

Detailed Product Description

High Light:

17.5kV Pad Mounted Metering Cabinet

PMY9-17.5 Pad Mounted Metering Cabinet

Three Phase Primary Metering Cabinet

1. Product introduction:

1.1 Product name and model:17.5kV Pad mounted primary metering cabinet PMY9-17.5, JLSZXW9-17.5 combined transformer

1.2 Product overview:

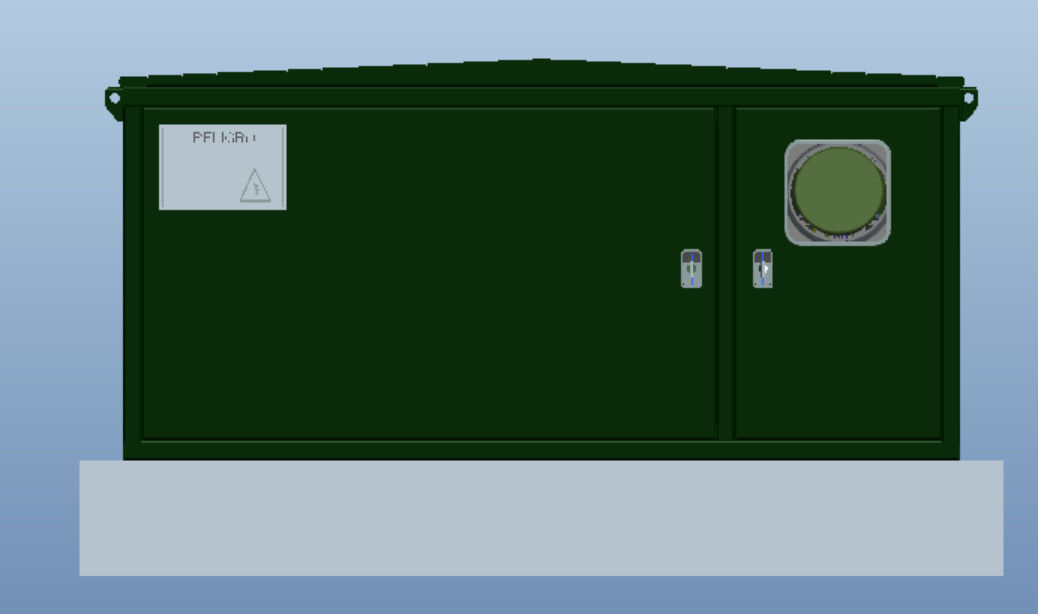

The metering cabinet is for outdoor cabinet type one-piece three-phase primary metering unit , inside has assembled a combination of three independent voltage transformer and current transformer, voltage transformers are made up of three-phase Y-Y star connection, current transformers can be 2pcs or 3pcs optional configuration, cabinet adopts zinc steel, stainless steel or aluminum alloy etc, cabinet surface spraying protection layer resistant to acid and alkali corrosion , prevent the UV irradiation, suitable for outdoor underground cable connected to the public power system. The metering cabinet has installed complete measuring meter box or interval, instrument transformers’ secondary lead all converge in meter box, equipped with test terminal blocks and electric meter installation space, can be configured as required when using electric meter or the user configuration of watt-hour meter can access, suitable for high voltage equipment in urban power distribution network line 17.5 kV and below for electric energy metering, current and voltage measurements.

1.3 Basic parameters:

No.	item	units	specification
	Highest voltage for equipment Um (r.m.s.)	kV	17.5
	rated frequency (fR)	Hz	50, 60 or 50/60
	Rated lightning impulse withstand voltage (peak)	kV	95 ,110
	Rated power-frequency withstand voltage on primary	kV	38
	Rated power-frequency withstand voltage on secondary	kV	3
	Number of CTs and VTs	pcs	3VT+3CT or 2CT+3VT
	Standard	/	IEC 61869-1:2007, IEC 61869-2:2012 IEC 61869-3:2011,IEC 61869-4:2013

2. Function and Application of the product:

Pad mounted Primary Metering Cabient meets the latest applicable industry standards and local and/or national electrical regulatory requirements. Used for energy metering management and automatic distribution network management system of three-phase underground cable urban distribution network, the primary side measurement is more accurate, and the electric energy loss of the line can be effectively measured to reduce the loss.

3. Main Features of the product:

1 The metering cabinet adopts the overall housing-shaped box design and is divided into three internal compartments, including medium-voltage cable connection room, medium-voltage instrument transformer room and metering meter box room. The compact and beautiful housing design does not affect the greening and landscape, and the outdoor floor installation is convenient and quick;
2 The metering unit shall assemble the instrument transformer and the meter box as a whole, preset the alarm signal of the door switch sensor, the lock seal and the ingenious door opening and closing linkage structure. Only after the medium-voltage cable room is opened, then anti-electricity-stealing design of meter box room can be opened.
3 The cabinet body is made of corrosion-resistant stainless steel or low carbon steel of the same performance. It is designed to be weather-proof, and the surface is coated with anticorrosive paint powder layer,acid and alkali resistance, UV resistance.
4 The internal MV combined instrument transformer is encapsulated and poured with epoxy resin solid, the surface is fully screened and touchable, and can be closely fitted with the external box. The compact size is only half that of the air insulation metering box, free of oil and gas and free of maintenance, meeting the requirements of safe operation and environmental protection;
5 The primary connection adopts separable sealing connection. The primary connection bushing have two connection types( 200A bushing well insert+200A connector and 600A interface bushing+600A connector) according to standard IEEE STD 386.

4. Product technical parameters:

Current transformer specifications

No	Item	Parameters
	Rated primary current	5A up to 600A
	Rated secondary current	5A or 1A
	Rated Continuous Thermal Current	120%,125%,150%,200% etc.
	Rated Short time current (Ith) (thermal 1 second)	80xIpr,100xIpr
	Rated Dynamic Current (Idyn)	2.5xIth
	Rated Output(VA)	12.5,15,20
	Accuracy Class	0.2S,0.2,0.5S,0.5,1 Metering
	Instrument Security Factor (FS)	5,10,20
	Applicable Standard	IEC: 61869-1&2

Voltage transformer specifications

No	Item	Parameters
	Rated primary voltage(V)	13200/√3,13800/√3,7200,8400
	Rated secondary voltage(V)	100/√3,110/√3,110,120,115
	Rated Voltage Factor	1.2/Continuous 1.5/30s,1.9/30s,1.9/8h
	Standard connection	Y-Y(star connection)
	Rated Output(VA)	15,20,25,30,50,75
	Accuracy Class	0.2,0.5,1,3 Metering
	Thermal burden(VA)	500
	Applicable Standard	IEC: 61869-1&3
