Outdoor Single Phase MV Current Transformer Epoxy Resin Type Withstand Dirtiness

Outdoor Single Phase MV Current Transformer Epoxy Resin Type Withstand Dirtiness

    • Outdoor Single Phase MV Current Transformer Epoxy Resin Type Withstand Dirtiness
  • Outdoor Single Phase MV Current Transformer Epoxy Resin Type Withstand Dirtiness

    Product Details:

    Place of Origin: ShenZhen
    Brand Name: Chuangyin
    Certification: IEEE/ANSI,Kema,CE
    Model Number: JDZW2-36

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: negotiable
    Packaging Details: Plywood
    Payment Terms: L/C, T/T,
    Supply Ability: 36,000,000pcs per year
    Contact Now
    Detailed Product Description
    Type: Single-Phase Rated Insulation Level: 36/70/170KV
    Installation Site: Outdoor Usage: Protective Relaying In Single-Phase Or Three-Phase AC Circuit
    Highest Voltage: 36KV Feature: Withstand Dirtiness, Ultraviolet Radiation
    High Light:

    single phase current transformer

    ,

    medium voltage instrument transformers

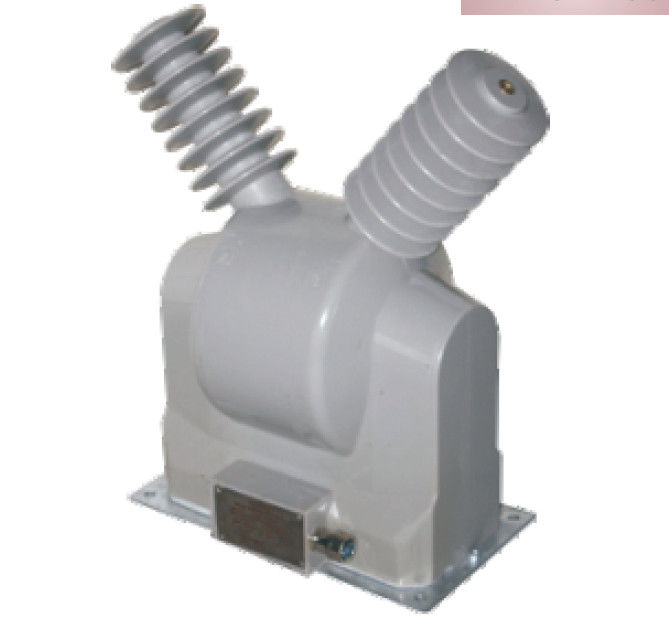

    JDZW2-36 36kV Outdoor Single-Phase Epoxy Resin Type Medium Current Transformer​





    Description



    Epoxy resin casting and double pole insulated VT, is widely used for measuring current, electric energy and protective relaying in the isolated neutral system with the frequency 50Hz or 60Hz and insulation voltage 36 kV (Up to 40.5kV).

    The iron core adopts advanced cold-rolled silicon steel sheet. High voltage outgoing line of primary winding was fetched out from top of the product; outgoing line of secondary winding was fetched out from transverse side of the product.



    Technical Data:



    1, Installation site: Outdoor
    2, Rated frequency: 50/60Hz
    3, Burden power factor: cosΦ=0.8 (lagging)
    4, Technical standard: IEC 60044-2(IEC 61869-1&3)



    Specification:



    Type Rated Primary Voltage(kV) Rated Secondary Voltage(kV) Accuracy classes combination

    Rated output

    (VA)

    Thermal limiting current

    (VA)

    Rated insulation level(kV)
    JDZW2-36

    30

    33

    34.5

    35

    0.11

    0.2 60 1000

    36/70/170

    0.5 120
    1 200

    0.11/0.11

    0.2/0.2 25/25 500/500
    0.2/0.5 25/50
    0.5/0.5 50/50



    Note: Upon request we are glad to offer transformers according to other technical specs.



    Outline drawing
