Dry Type Epoxy Resin 12kv MV Current Transformer with Epoxy Resin Casting

Dry Type Epoxy Resin 12kv MV Current Transformer with Epoxy Resin Casting

  • Dry Type Epoxy Resin 12kv MV Current Transformer with Epoxy Resin Casting
Dry Type Epoxy Resin 12kv MV Current Transformer with Epoxy Resin Casting
Product Details:
Place of Origin: Shenzhen
Brand Name: Chuangyin
Certification: Kema,CE,SGS,TUV
Model Number: LZJC-12(G)
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Plywood
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 36,000,00pcs per year
Contact Now
Detailed Product Description
Rated Primary Current: 50-1000/5A Installation Site: Switchgear
Type: Dry Type Standard: IEC60044-1(IEC61869-1&2)​
Material: Epoxy Resin Accuracy: 0.2(S)/0.2(S) 0.2(S)/0.5 0.2/(S)10P 0.5/10P
High Light:

single phase current transformer

,

medium voltage instrument transformers



Dry Type Epoxy Resin 12kv MV Current Transformer with Epoxy Resin Casting







1.Product Introduction:

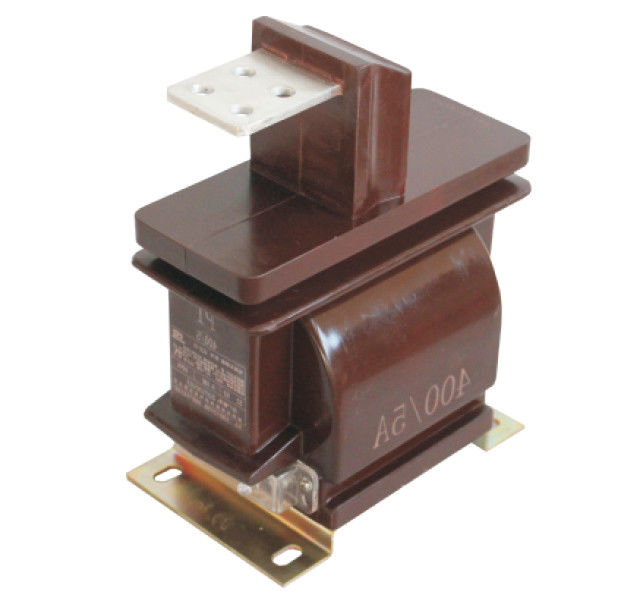

LZJC-12 current transformer, epoxy resin casting insulation and fully enclosed support construction, encloses primary & secondary windings and annular core in the epoxy resin casting body. The product has groove to strengthen the external insulation. It can be installed omni-directional due to light weight and withstand nastiness and dampness. It is widely used for measuring current, electric energy and relay protection in the electrical system with the rated frequency 50Hz or 60Hz and highest voltage for equipment 12kV.





2. Technical Data:



Usage terms

1. Ambient temperature: -5-40℃

2. Height above sea level : within 1000m

3. Installation site: indoor



Main technical parameter

1. Rated insulation voltage: 12/28/75kV etc.

2. Rated frequency: 50/60hz

3. Installation Site: Indoor

4. Standards: IEC60044-1(IEC61869-1&2)




3. Specification:

Rated primary current (A) Secondary accuracy classes combination

Rated output

(VA)

Rated short-time thermal current (kA/S) Rated dynamic current ( kA)
0.2(S) 0.5 10P
50-200/5

0.2(S)/0.2(S)

0.2(S)/0.5

0.2/(S)10P

0.5/10P

10 10 15 75I1n 180I1n
300/5 20 50
400/5 30 75
500/5 30 75
600/5 40 80
800/5 40 80
1000/5 63 105


4. Outline Drawing:

Dry Type Epoxy Resin 12kv MV Current Transformer with Epoxy Resin Casting 0




5.Photos:

Dry Type Epoxy Resin 12kv MV Current Transformer with Epoxy Resin Casting 1

Dry Type Epoxy Resin 12kv MV Current Transformer with Epoxy Resin Casting 2Dry Type Epoxy Resin 12kv MV Current Transformer with Epoxy Resin Casting 3



Contact Details
Shenzhen Chuangyin Co., Ltd.

Contact Person: Sales Manager

Tel: +8613823790397
