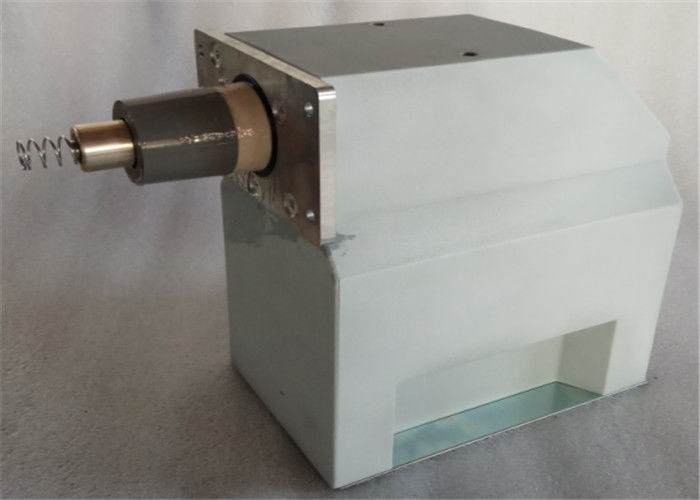

Indoor MV Voltage Transformer Single-Core Metallic Coating Touch Proof Type

Indoor MV Voltage Transformer Single-Core Metallic Coating Touch Proof Type

  • Indoor MV Voltage Transformer Single-Core  Metallic Coating Touch Proof Type
Indoor MV Voltage Transformer Single-Core  Metallic Coating Touch Proof Type
Product Details:
Place of Origin: ShenZhen
Brand Name: Chuangyin
Certification: Test Report
Model Number: JDZX15-12/24PC
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: Carton packing for one sets, one set including three piece with Components
Delivery Time: Within 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 36,000,00pcs per year
Contact Now
Detailed Product Description
Load Power Factor: Cos=0.8 (lagging) Material: Epoxy Resin
Rated Frequency: 50/60HZ Rated Voltage: 12/2436KV
Installation Site: Indoor Standsrd Compliant: IEC 60044-2 IEC 61869-1&3
High Light:

medium voltage transformer

,

medium voltage potential transformer



Indoor Single-Core Metallic Coating Touch Proof Type MV Voltage Transformer



1.Introduction:



Voltage transformer is fully enclosed cast insulation structure, the primary and secondary winding, the toroidal core are all encapsulated in the epoxy resin casting body to improve the filterability and moisture resistance. The product plug part is designed to conform to the 2 # inner cone (EN 50181). The overall structure is designed to be fully shielded surface. It is used indoor for measuring voltage, electric energy and protective relaying in single-phase or three-phase AC circuit with the frequency 50Hz or 60Hz and highest voltage for equipment 36kV.



2. Technical Data:



Installation site: Indoor
Rated frequency: 50/60Hz
Load power factor: cosΦ=0.8 (lagging)
Technical standard accords with: IEC 60044-2

IEC 61869-1&3





3.Specification:


Item Specification Unit Data
1 Um kV Up to 24
2 Rated Insulation Level kV Up to 24/50/125
3 Rated Primary Voltage V

22000/√3

11000/√3

4 Rated Secondary Voltage V 110/√3 or 110/3


Model

Rated Primary Voltage

(KV)

Rated Secondary Voltage

(KV)

Accuracy Classes combination

Rated output

(VA)

Thermal Limiting Output

(VA)

BIL

(KV)

JDZX15-12/24PC

22/√3

11/√3

0.11/√3 0.2 25 300

24/50/125









12/28/75

0.5 50
1 80
0.11/√3/0.11/3 0.2/6P(3P) 25/50 150
0.5/6P(3P) 50/50


Note:Other specifications can be designed as customized.



Outline Drawing:unit/mm



Note: Other specifications can be designed as customized.



Outline drawing:



Indoor MV Voltage Transformer Single-Core  Metallic Coating Touch Proof Type 0
