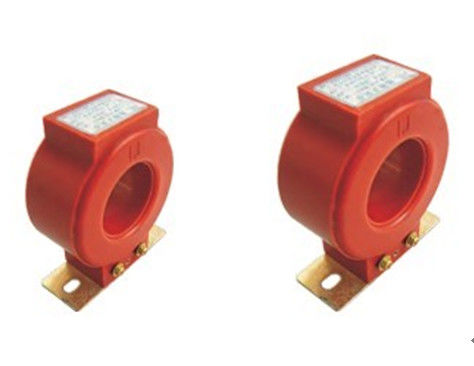

Indoor Ring Type Low Voltage Current Transformer 0.5/0.66kV

Indoor Ring Type Low Voltage Current Transformer 0.5/0.66kV

  • Indoor  Ring Type Low Voltage Current Transformer  0.5/0.66kV
Indoor  Ring Type Low Voltage Current Transformer  0.5/0.66kV
Product Details:
Place of Origin: ShenZhen
Brand Name: Chuangyin
Certification: Test Report
Model Number: LMZ1-0.5
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: Carton packing for one sets, one set including three piece with Components
Delivery Time: Within 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 36,000,00pcs per year
Contact Now
Detailed Product Description
Type: LV Current Transformer Rated Voltage: 0.5/0.66kV
Rated Secondary Current: 5A、1A Rated Frequency: 50/60HZ
Technical Standard: IEC 60044-1, IEC 61869-1/2 Installation Site: Indoor
High Light:

busbar type current transformer

,

bushing current transformer


Low Voltage Current Transformer Indoor Ring Type Plastic Case With Epoxy



1. Introduction



LMZ1-0.5 Current transformer is used indoor ,be suitable for rated voltage 0.5/0.66kV,it is widely used for measuring current, electric energy and protective relaying in the power system with the rated frequency 50Hz,The product belongs to epoxy resin casting current transformer with fixed bottom plate.

Compliant: IEC60044-1standard



2. Working circumstance and installation condition



1) Installation circumstance :Indoor

2). Ambient temperature: -5℃-40℃.

3). Ambient humidity: RH≤80%

4.) Altitude:≤1000m

5). Atmosphere: NO serious pollution



3. Main technical parameter and dimension



Rated current ratio(A) Rated output(VA) Np
0.5 0.5S 0.2
5/5 5 5 5 30
10/5 5 5 5 15
15/5 5 5 5 10
20/5 5 5 5 10
25/5 5 5 5 6
30/5 5 5 5 5
40/5 5 5 5 5
50/5 5 5 5 3
75/5 5 5 5 2
100/5 5 5 5 2
100/5 5     1
150/5 5 5 5 1
200/5 5 5 5 1
250/5 5 5 5 1
300/5 5 5 5 1
Rated current ratio(A) Rated output(VA) Np
0.5 0.5S 0.2
400/5 5 5 5 1
500/5 10 5 5 1
600/5 10 5 5 1
750/5 10 5 5 1
800/5 10 5 5 1





4.Dimension:

Indoor  Ring Type Low Voltage Current Transformer  0.5/0.66kV 0
