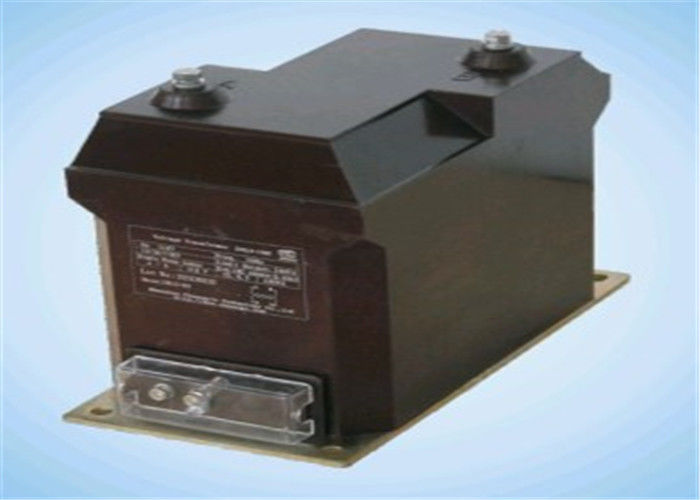

JDZ10-12Q(C) 12kV Indoor Single-phase Epoxy Resin Type Voltage Transformer

JDZ10-12Q(C) 12kV Indoor Single-phase Epoxy Resin Type Voltage Transformer

  • JDZ10-12Q(C) 12kV Indoor Single-phase Epoxy Resin Type Voltage Transformer
JDZ10-12Q(C) 12kV Indoor Single-phase Epoxy Resin Type Voltage Transformer
Product Details:
Place of Origin: Available
Brand Name: Chuangyin
Certification: IEEE/ANSI,KEMA,CE
Model Number: JDZ10-12Q(C)
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: Plywood
Supply Ability: 36,000,000 pcs per year
Contact Now
Detailed Product Description
Type: Epoxy Resin Rated Frequency: 50/60HZ
Highest Voltage: 12kV Installation: Indoor
Standsrd: IEEE/ANSI/IEC
High Light:

medium voltage transformer

,

single phase voltage transformer

Description



Epoxy resin casting and fully enclosed construction, is used indoor for measuring voltage, electric energy and protective relaying in the electric system with the frequency 50Hz or 60Hz and highest voltage for equipment 7.2/12kV.The product has the feature of high reliability, low magnetism of core, large creepage distance of external insulation and maintenance free etc.



Technical Data

  1. Installation Site: indoor
  2. Rated Frequency: 50/60Hz
  3. Load power factor: cosΦ=0.8 (lagging)
  4. Technical standard accords with IEC 60044-2(IEC 61869-1&3)

Specification:



Type

Rated primary

voltage (kV)

Rated secondary voltage (kV) Accuracy classes combination

Rated output

(VA)

Thermal limiting current

(VA)

Rated insulation level(kV)
JDZ10-12QC 11 0.11 0.2 25 500 12/28/75
0.5 50
1 100
0.11/0.11 0.2/0.2 15/15 300/300
0.2/0.5 15/30
0.11/0.22 0.2/6P(3P) 15/500 500
0.5/6P(3P) 30/500





Outline drawing:
