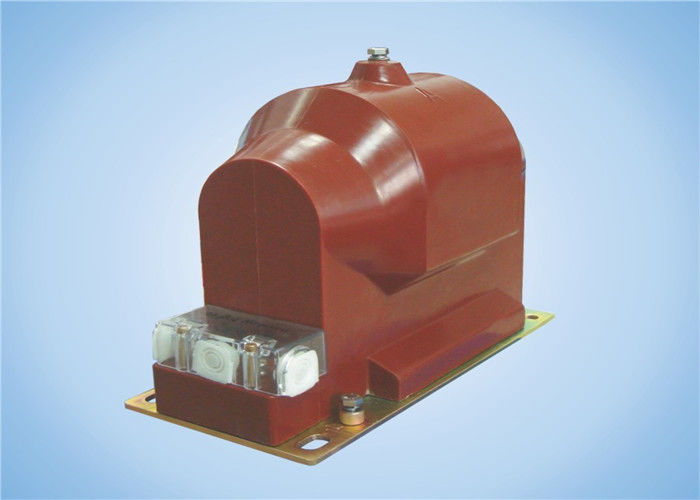

JDZX9-12Q,JDZX9-12QC 12kV Indoor Single-phase Epoxy Resin Type Voltage Transformer

JDZX9-12Q,JDZX9-12QC 12kV Indoor Single-phase Epoxy Resin Type Voltage Transformer

  • JDZX9-12Q,JDZX9-12QC 12kV Indoor Single-phase Epoxy Resin Type Voltage Transformer
JDZX9-12Q,JDZX9-12QC 12kV Indoor Single-phase Epoxy Resin Type Voltage Transformer
Product Details:
Place of Origin: Available
Brand Name: Chuangyin
Certification: IEEE/ANSI,KEMA,CE
Model Number: JDZX9-12Q,JDZX9-12QC
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: Plywood
Supply Ability: 36,000,000 pcs per year
Contact Now
Detailed Product Description
Type: Epoxy Resin Rated Frequency: 50/60HZ
Highest Voltage: 12kV Installation: Indoor
Standsrd: IEEE/ANSI/IEC Color: Red
High Light:

medium voltage potential transformer

,

single phase voltage transformer

JDZX9-12Q,JDZX9-12QC 12kV Indoor Single-phase Epoxy Resin Type Voltage Transformer



Description



Epoxy resin casting and full enclosed construction, is used indoor switch cabinet to measure voltage, electric energy and protective relaying in single phase or three phase AC circuit with the frequency 50Hz or 60Hz and highest voltage for equipement 12kV.

The iron core adopts advanced cold-rolled silicon steel sheet. High voltage outgoing line of primary winding was fetched out from top of the product; outgoing line of secondary winding was fetched out from transverse side of the product.



Technical parameter

1. Installation Site:                                    Indoor

2, Rated Frequency:                                 50/60Hz

3, Load power factor:                                cosφ=0.8(lagging)

4, Technical standard accords with           IEC 60044-2(IEC 61869-1&3)



Type

Rated primary

voltage (kV)

Rated secondary voltage (kV) Accuracy classes combination

Rated output

(VA)

Thermal limiting current

(VA)

Rated insulation level(kV)

JDZX9-12Q

11/√3

0.11/√3/0.11/3

0.2/6P(3P) 25/100 400

12/28/75

0.5/6P(3P) 50/100
1/6P(3P) 100/100
JDZX9-12QC 11/√3

0.11/√3/0.11/3

0.2/6P(3P) 60/150 800 12/28/75
0.5/6P(3P) 120/150
1/6P(3P) 250/150

0.11/√3/0.11/√3/0.11/3

0.2/0.2/6P(3P) 30/30/150 400/400
0.2/0.5/6P(3P) 30/50/150
0.5/0.5/6P(3P) 50/50/150

Note: Upon request we are glad to offer transformers according to other technical specs.



Outline drawing



JDZX9-12Q,JDZX9-12QC 12kV Indoor Single-phase Epoxy Resin Type Voltage Transformer 0

JDZX9-12Q,JDZX9-12QC 12kV Indoor Single-phase Epoxy Resin Type Voltage Transformer 1
