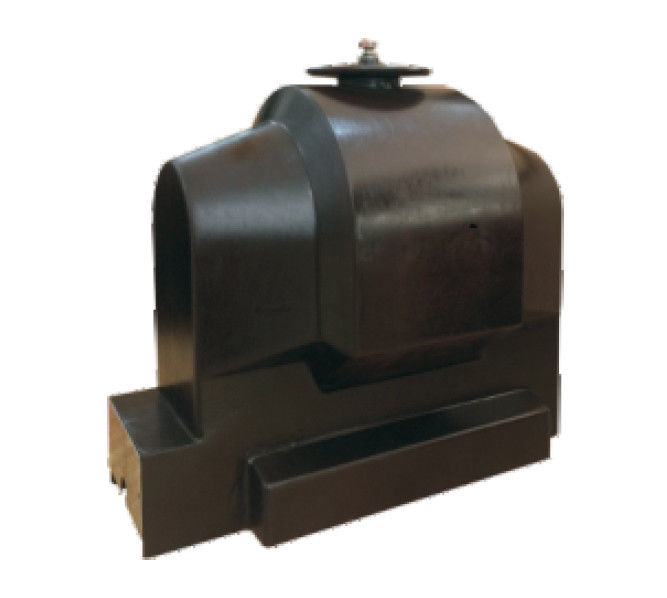

JDZXF14-12 12kV Indoor Single-phase Epoxy Resin Type Voltage Transformer

JDZXF14-12 12kV Indoor Single-phase Epoxy Resin Type Voltage Transformer

  • JDZXF14-12 12kV Indoor Single-phase Epoxy Resin Type Voltage Transformer
JDZXF14-12 12kV Indoor Single-phase Epoxy Resin Type Voltage Transformer
Product Details:
Place of Origin: Available
Brand Name: Chuangyin
Certification: IEEE/ANSI,KEMA,CE
Model Number: JDZXF14-12
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: Plywood
Supply Ability: 36,000,000 pcs per year
Contact Now
Detailed Product Description
Type: Epoxy Resin Rated Frequency: 50/60HZ
Highest Voltage: 12kV Installation: Indoor
Standsrd: IEEE/ANSI/IEC Color: Red
High Light:

medium voltage transformer

,

medium voltage potential transformer

JDZXF14-12 12kV Indoor Single-phase Epoxy Resin Type Voltage Transformer



Description



JDZXF14-12 single phase, four-winding earthed voltage transformer, adopts epoxy resin material casting and fully enclosed construction, is used for measuring voltage, electric energy and protective relaying in the electric system with the frequency 50Hz or 60Hz and highest voltage for equipement 12kV.

The product has three secondary windings used for measuring, supervising and protection. Secondary windings and primary windings are winded one concentric circle, the iron core is winded core with small no-load current and no-load loss.





Technical parameter

1,Installation site: Indoor

2,Rated Frequency: 50/60Hz

3,Load power factor: cosΦ=0.8(lagging)

4,Technical standard: IEC 60044-2(IEC 61869-1&3)



Specification:



Type

Rated primary

voltage (kV)

Rated secondary voltage (kV) Accuracy classes combination

Rated output

(VA)

Thermal limiting current

(VA)

Rated insulation level(kV)
JDZXF14-12 11/√3

0.11/√3/0.11/3

0.11/√3/0.11/3

0.2/6P(3P) 60/150 800 12/28/75
0.5/6P(3P) 120/150
1/6P(3P) 250/150

0.11/√3/0.11/√3/0.11/3

0.2/0.2/6P(3P) 30/30/150 400/400
0.2/0.5/6P(3P) 30/50/150
0.5/0.5/6P(3P) 50/50/150

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.



Outline drawing



JDZXF14-12 12kV Indoor Single-phase Epoxy Resin Type Voltage Transformer 0
