JSZV 18-12R MV Voltage Transformer 12kV Indoor Three-Phase VT Epoxy Resin Type

JSZV 18-12R MV Voltage Transformer 12kV Indoor Three-Phase VT Epoxy Resin Type

  • JSZV 18-12R MV Voltage Transformer 12kV Indoor Three-Phase VT Epoxy Resin Type
  • JSZV 18-12R MV Voltage Transformer 12kV Indoor Three-Phase VT Epoxy Resin Type
JSZV 18-12R MV Voltage Transformer 12kV Indoor Three-Phase VT Epoxy Resin Type
Product Details:
Place of Origin: Shenzhen
Brand Name: Chuangyin
Certification: Kema,CE,SGS,TUV
Model Number: JSZV 18-12R
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: Carton packing for one sets, one set including three piece with Components
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 36,000,00pcs per year
Contact Now
Detailed Product Description
Rated Insulation Level: 12 KV Termal Limiting Output: 500;250/250;500
Feature: Large Creepage Distance Of External Insulation Material: Epoxy Resin
Primary Cone: IEE 386-2006 Load Power Factor: Cos =0.8
High Light:

medium voltage potential transformer

,

single phase voltage transformer

JSZV 18-12R MV Voltage Transformer 12kV Indoor Three-Phase VT Epoxy Resin Type


1.Product Introduction:

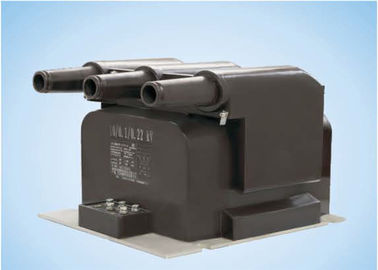

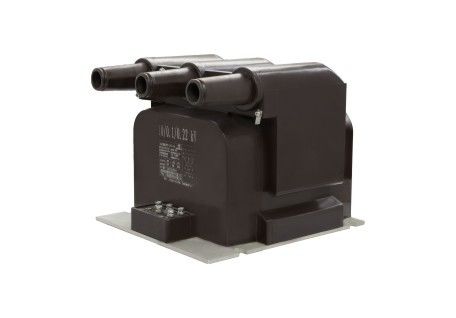

Epoxy resin casting and full enclosed construction, is used indoo for measuring voltage, electric energy and protective relaying in single-phase or three-phase AC circuit with the frequency 50Hz or 60Hz and highest voltage for equipment 12kV.
The product has the feature of high reliability, low magnetism of core, large creepage distance of external insulation andmaintenance free etc.
The primary cone accords with IEEE 386-2006 figure 7



Technical Data

1. Installation site :indoor
2.Rated frequency: 50/60Hz
3. Load power factor: cos(D=0.8 ( lagging )
4. Technical standard accords with IEC 60044-2
                                                 (IEC 61869-10)



Specification

Type

Rated primary

voltage (kV)

Rated secondary voltage (kV) Accuracy classes combination

Rated output

(VA)

Thermal limiting current

(VA)

Rated insulation level(kV)
JSZV18-12R 11



0.11

0.2 25 500 12/28/75
0.5 50
1 100



0.11/0.11

0.2/0.2 15/15 250/250
0.2/0.5 15/20



0.11/0.22

0.2/6P(3P) 25/500 500
0.5/6P(3P) 50/500

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.



Outline drawing


JSZV 18-12R MV Voltage Transformer 12kV Indoor Three-Phase VT Epoxy Resin Type 0
