| Place of Origin: | Shenzhen |
| Brand Name: | Chuangyin |
| Certification: | Kema,CE,SGS,TUV |
| Model Number: | JDZ16-12R |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Carton packing for one sets, one set including three piece with Components |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 36,000,00pcs per year |
| Installation Site: | Indoor | Rated Insulation Level: | 12/28/75KV |
|---|---|---|---|
| Rated Primary Voltage: | 11KV | Material: | Epoxy Resin |
| Net Weight: | 31KG/pcs | Package: | 1pcs/Plywood=510*300*420 |
| High Light: | medium voltage transformer,single phase voltage transformer |
||

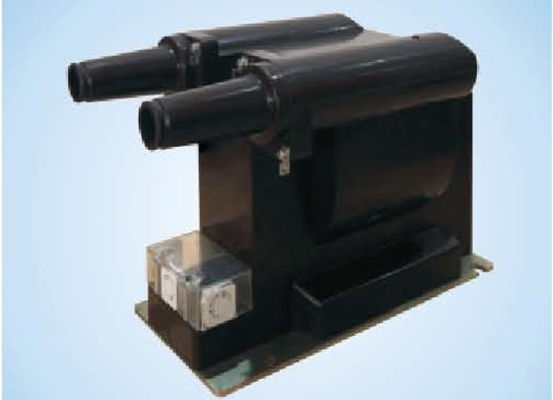

JDZ16-12R MV Voltage Transformer 12kV Indoor Potential transformer Epoxy Rersin
1.Product Introduction:
JDZ18-12R voltage transformer, epoxy resin casting and full enclosed construction, is used indoor for measuring current, electric energy and protective relaying in single-phase or three-phase AC circuit with the frequency 50Hz or 60Hz and highest voltage for equipement 12kV.
The product has the feature of high reliability, low magnetism of core, large creep distance of external insulation and maintenance free etc.
Main technical parameter
1. Highest voltage for equipment: 12kV
2. Rated primary voltage: 11kV
3. Rated secondary voltage: 100/220V or 110/220V or 100V or 110V.
4. Technical standard accords with IEC 60044-2:2003 Part2 Instrument transformers-Part2: inductive voltage transformers
| Type |
Rated primary voltage (kV) |
Rated secondary voltage (kV) | Accuracy classes combination |
Rated output (VA) |
Thermal limiting current (VA) |
Rated insulation level(kV) |
| JDZ18-12R | 11 |
0.1 0.11 |
0.2 | 30 | 500 | 12/28/75 |
| 0.5 | 50 | |||||
| 1 | 80 | |||||
|
0.1/0.1 0.11/0.11 |
0.2/0.2 | 15/15 | 500 | |||
| 0.2/0.5 | 15/25 | |||||
|
0.1/.022 0.11/0.22 |
0.2/6P(3P) | 30/800 | 800 | |||
| 0.5/6P(3P) | 50/800 |
Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.
Outline drawing
Contact Person: Mr. Dieky Lin
Tel: +86 138 2379 0397
Fax: 86-0755-8600-0614
