| Place of Origin: | Shenzhen |
| Brand Name: | Chuangyin |
| Certification: | Kema,CE,SGS,TUV |
| Model Number: | JSZV20-12R |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Carton packing for one sets, one set including three piece with Components |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 36,000,00pcs per year |
| Net Weight: | 57KG/pcs | Insulation Site: | Indoor |
|---|---|---|---|
| Feature: | High Reliability, Low Magnetism Of Core | Construction: | Full-enclosed |
| Package: | 1pcs/Plywood=445*440*440mm | Um: | 12KV |
| High Light: | medium voltage transformer,single phase voltage transformer |
||

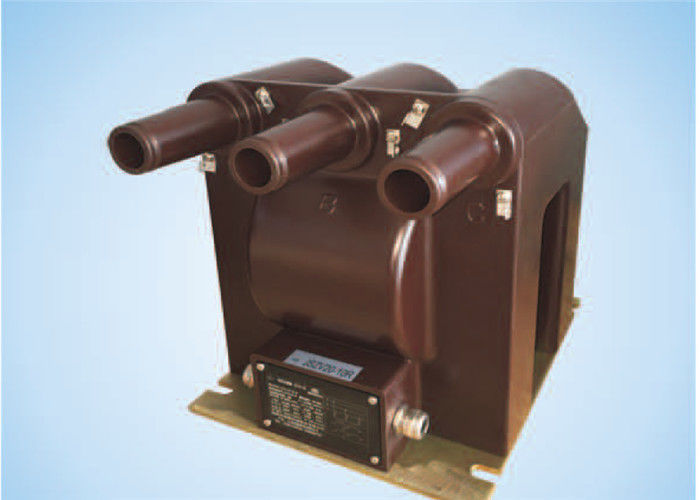

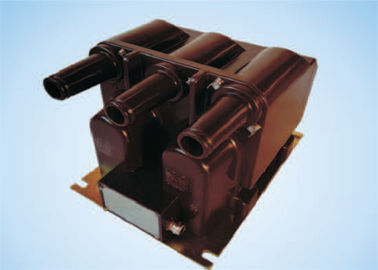

JSZV20-12R MV Voltage Transformer 12kV VT IEEE BUSHING TYPE Resistance Contamination
1.Product Introduction:
Voltage transformer with fully enclosed cast insulation structure, the primary and secondary windings and toroidal core all encapsulated in epoxy casting body, using elbow-type plug to increase the outer insulation creepage distance and resistance contamination and moisture performance. It is used indoor for measuring voltage, electric energy and protective relaying in three-phase AC circuit with the frequency 50Hz or 60Hz and highest voltage for equipment 12M
The primary cone accords with IEEE 386-2006 figure 7.
Technical Data
1. Installation site: Indoor
2. Rated frequency: 50/60Hz
3. Load power factor: coscD=0.8 (lagging)
4. Technical standard accords with: IEC 60044-2
IEC 61869-1 &3
Specification:
| Item | Specification | Unit | Data |
| 1 | Um | kV | 12 |
| 2 | Rated Insulation Level | kV | 12/28/75 |
| 3 | Rated Primary Voltage | V | 11000 |
| 4 | Rated Secondary Voltage | V | 110 or 220 |
| Type |
Rated primary voltage (kV) |
Rated secondary voltage (kV) | Accuracy classes combination |
Rated output (VA) |
Thermal limiting current (VA) |
Rated insulation level(kV) |
| JSZV20-12R | 11 |
0.11 |
0.2 | 25 | 500 | 12/28/75 |
| 0.5 | 50 | |||||
| 1 | 80 | |||||
|
0.11/0.11 |
0.2/0.2 | 10/10 | 400/400 | |||
| 0.2/0.5 | 10/20 | |||||
|
0.11/0.22 |
0.2/6P(3P) | 20/800 | 300/800 | |||
| 0.5/6P(3P) | 50/800 |
Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.
Outline drawing
