| Place of Origin: | China |
| Brand Name: | CY-Group |
| Certification: | KEMA CE ISO SGS TUV UC3 |
| Model Number: | JDZ-17.5(24) |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Plymood |
| Delivery Time: | 3-8 days |
| Payment Terms: | L/C, TT,D/A,D/P |
| Supply Ability: | 3600000pcs/year |
| Material: | Epoxy Resin | Voltage: | 24KV |
|---|---|---|---|
| Rated Frequency: | 50/60Hz | Installation Site: | Indoor |
| Rated Primary Voltage (kV): | 13.8 15 20 22 | Rated Secondary Voltage: | 0.1/0.11 0.11/0.22 |
| Standard: | IEC60044-2.2003 | Burden Power Factor: | Cos￠=0.8(lagging) |
| Rated Insulation Level(kV): | 17.5/38/95 24/50/125 24/65/125 | Rated Voltage Of Residual Voltage Windings: | 100/ 3V 、110/ 3V、 115/ 3V、 120/ 3V |
| High Light: | medium voltage transformer,single phase voltage transformer |
||

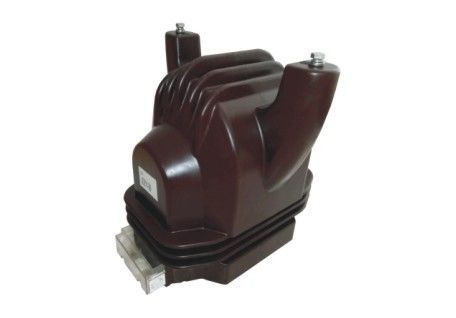

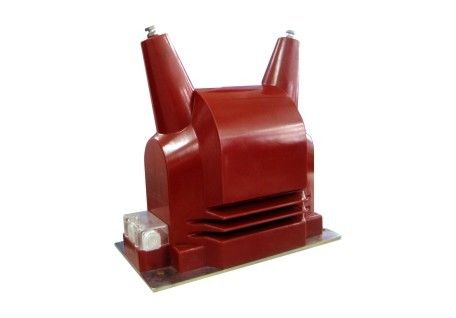

Dry type MV Voltage Transformer JDZ-17.5(24) Voltage transformer CE/TUV/SGS/KEMA Outdoor/Indoor Use Epoxy Resin Cast
JDZ-17.5(24) voltage transformer , epoxy resin casting and fully enclosed construction, is used indoor for measuring current, electric energy and protective relaying the electric system with the frequency 50Hz or 60Hz and highest voltage for equipment 17.5 kV (Up to 24kV).
The product has the feature of high reliability, low magnetism of core, large creepage distance of external insulation and maintenance free etc.
Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs..
Outline drawing
