| Type: | Epoxy Resin | Rated Frequency: | 50/60HZ |
|---|---|---|---|
| Highest Voltage: | 12kV | Installation: | Indoor |
| Standsrd: | IEEE/ANSI/IEC | Color: | Red |
| High Light: | medium voltage transformer,medium voltage potential transformer |
||

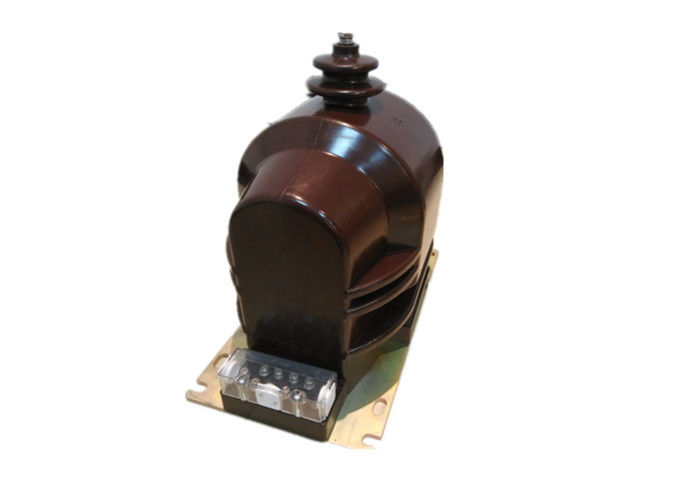

JDZX9-12G 12kV Indoor Single-phase Epoxy Resin Type Voltage Transformer
Used indoor single phase or three phase AC circuit for measuring electric capacity, voltage and protective relaying with the frequency of 50Hz or 60Hz and highest voltage for equipment 12kV.The product adopts epoxy resin casting full-closed structure with low magnetism density and large creepage distance of external insulation The product has high reliability and maintenance free .
Technical Data
1,Installation site: Indoor
2,Rated Frequency: 50/60Hz
3,Burden power factor: cosΦ=0.8(lagging)
4,Technical standard: IEC 60044(IEC 61869-1&3)
Specification
| Type |
Rated primary Voltage (KV) |
Rated secondary Voltage (KV) |
Accuracy classes combination |
Rated output (VA) |
Thermal limiting Output (VA) |
Rated Insulation level (KV) |
| JDZX9-12G | 11/√3 | 0.11/√3 | 0.2 | 50 |
1200
1000
500/500
|
12/28/75 |
| 0.5 | 100 | |||||
| 1 | 200 | |||||
| 0.11/√3/0.11/3 | 0.2/6P(3P) | 50/100 | ||||
| 0.5/6P(3P) | 100/100 | |||||
| 0.11/√3/0.11/√3/0.11/3 | 0.2/0.5/6P(3P) | 50/50/100 | ||||
| 0.11/√3/0.11/√3/0.11/√3/0.11/3 | 0.2/0.5/6P(3P)/6P(3P) | 50/50/100/100 |
Note:Upon request we are glad to offer transformers according to other technical specs.
Outline Drawing:
