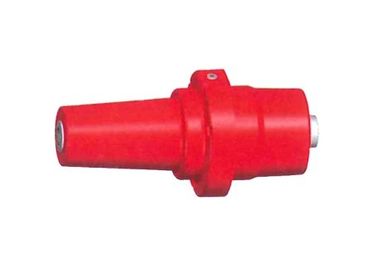

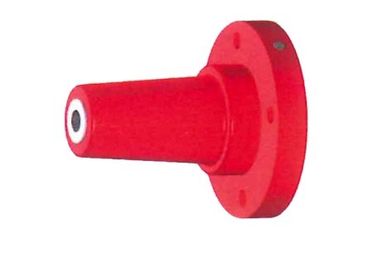

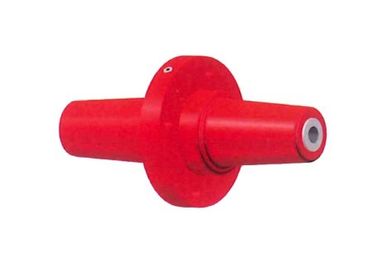

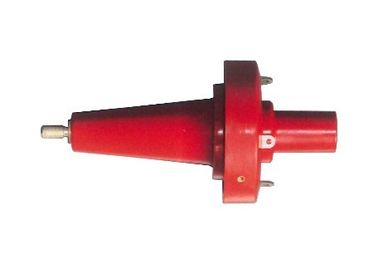

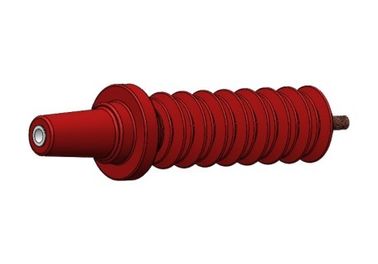

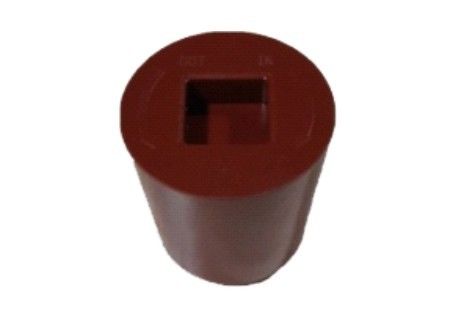

Bus - Bar Epoxy Resin Cast Bushing For Combined Connection Ring Main Units / Gas Insulated Switchgear

Bus - Bar Epoxy Resin Cast Bushing For Combined Connection Ring Main Units / Gas Insulated Switchgear

    • Bus - Bar Epoxy Resin Cast Bushing For Combined Connection Ring Main Units / Gas Insulated Switchgear
    • Bus - Bar Epoxy Resin Cast Bushing For Combined Connection Ring Main Units / Gas Insulated Switchgear
    • Bus - Bar Epoxy Resin Cast Bushing For Combined Connection Ring Main Units / Gas Insulated Switchgear
    • Bus - Bar Epoxy Resin Cast Bushing For Combined Connection Ring Main Units / Gas Insulated Switchgear
    • Bus - Bar Epoxy Resin Cast Bushing For Combined Connection Ring Main Units / Gas Insulated Switchgear
    • Bus - Bar Epoxy Resin Cast Bushing For Combined Connection Ring Main Units / Gas Insulated Switchgear
    • Bus - Bar Epoxy Resin Cast Bushing For Combined Connection Ring Main Units / Gas Insulated Switchgear
    • Bus - Bar Epoxy Resin Cast Bushing For Combined Connection Ring Main Units / Gas Insulated Switchgear
  • Bus - Bar Epoxy Resin Cast Bushing For Combined Connection Ring Main Units / Gas Insulated Switchgear

    Product Details:

    Place of Origin: China
    Brand Name: Shenzhen Chuangyin Co.,Ltd.
    Certification: Type test report
    Model Number: CYSDJ-15/630

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Carton / Plywood
    Contact Now
    Detailed Product Description
    Type: Bus-bar Connector Voltage: 35kV
    Use: RMU

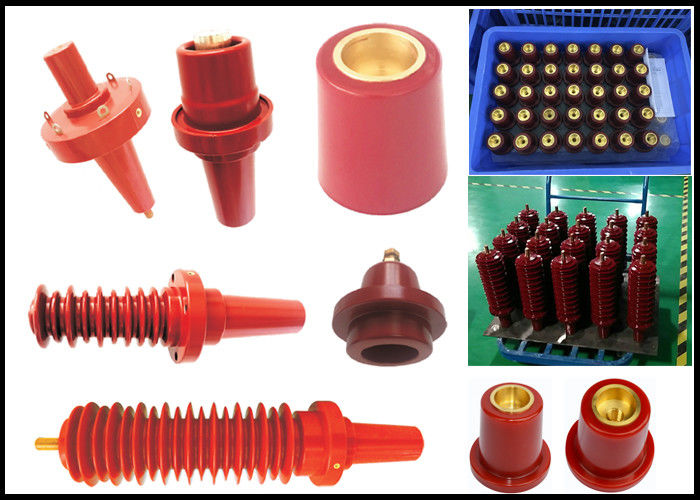

    We are manufacturer for APG Accessories (Moulded Epoxy Insulated Parts)

    250A, 24 kV Apparatus Bushing
    Application
    Chuangyin® Apparatus Bushing is widely applicable for use in equipment insulated
    with oil fluid, typically for transformers, switchgear, capacitors.
    The interface designed to comply with EN 50180 & EN 50181 interface type A and IEC 60137.

    Features:
    Made of epoxy resin
    Produced by APG technology
    100% factory tested
    In compliance with EN 50180 & EN 50181 interface type A and IEC 60137

    Technical Data:

    Part Number CYSTGZ-24/250
    Voltage Class 24 kV
    Rated Current 250 A
    AC Withstand Voltage 1 min 42 kV
    Partial Discharge 15 kV, ≤10 pC
    BIL 95 kV
    Leakage Rate <1× 10-10 Pa•m3/s
    Interface Type A





    Kindly Note:
    Our Factory Products Catalog as Follow:

    I. Instrument Transformer(Epoxy Resin Type, upto72.5kV)
    i. LV & MV Current/Voltage Transformer
    ii. Electronic Instrument Transformer/LPIT/Sensor Split Core Current Transformer/Rogowski Coil
    iii. Split Core Current Transformer/Rogowski Coil

    II. Cable Accessories(EPDM, upto42kV)
    i. Separable Connector IEC/IEEE
    ii. Busbar Connection System
    iii. Switchgear Insulation Components
    iv. Cold Shrink Cable Accessories
