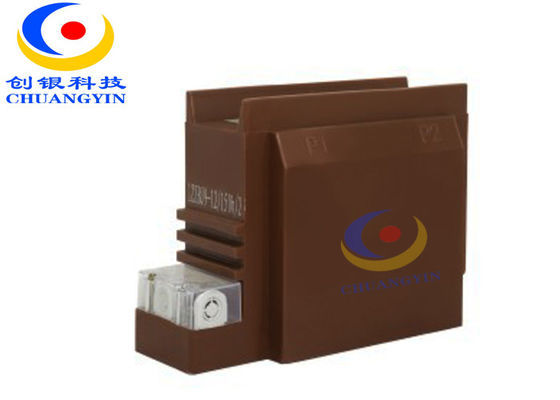

Chuangyin 12kV MV CT Current Transformer for Air Insulation Switchgear

Chuangyin 12kV MV CT Current Transformer for Air Insulation Switchgear

    • Chuangyin 12kV MV CT Current Transformer for Air Insulation Switchgear
    • Chuangyin 12kV MV CT Current Transformer for Air Insulation Switchgear
    • Chuangyin 12kV MV CT Current Transformer for Air Insulation Switchgear
    • Chuangyin 12kV MV CT Current Transformer for Air Insulation Switchgear
  • Chuangyin 12kV MV CT Current Transformer for Air Insulation Switchgear

    Product Details:

    Place of Origin: Shenzhen
    Brand Name: Chuangyin
    Certification: Kema,CE,SGS,TUV
    Model Number: LZZBJ9-12/150b/2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Packaging Details: Plywood
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 36,000,00pcs per year
    Contact Now
    Detailed Product Description
    Rated Insulation Level: 12/28/75 Kv Rated Primary Current: 10-1250/5A
    Rated Secondary Current: 10-1200/5A Material: Epoxy Resin Casting
    Accuracy: 0.2(S)/0.2(S) 0.2(S)/0.5 0.2(S)/10P 0.5/10P Type: Indoor

    Type test report Proved 12kV MV CT Current Transformer for Air Insulation Switchgear





    We are manufacturer for instrument transformer

    CE Proved 12kV MV Current Transformer for Air Insulation Switchgear

    12kV indoor single phase epoxy resin type





    1. Product Introduction:



    Chuangyin type LZZBJ9-12/150b/2, LZZBJ9-12/150b/4 current transformer.

    Epoxy resin casting insulation and fully enclosed support construction, encloses the primary & secondary windings and annular core in the epoxy resin casting body.

    The product has the feature of light weight, omni-directional installation, withstanding nastiness and dampness.

    It is widely used for measuring current, electric energy and protective relaying in the electrical system with the rated frequency 50Hz or 60Hz and highest voltage for equipment 12kV.





    2. Technical Data:



    1). Rated insulation voltage: 12/28/75kV.

    2). Rated frequency: 50/60hz

    3). Installation Site: Indoor

    4). Standards: IEC60044-1(IEC61869-1&2) Part 1: Instrument transformers-Part1: Current transformers



    3. Specification:

    Single ratio--Chuangyin type LZZBJ9-12/150b/2

    Rated current ratio

    (A)

    Accuracy classes combination

    Rated output

    (VA)

     FS

     ALF

    Rated short-time thermal current

    (kA/S)

    Rated dynamic current

    ( kA)

    Measuring

    Protective

    0.2(S)

    0.5

    10P

    10-200/5

    0.2(S)/0.2(S)

    0.2(S)/0.5

    0.2(S)/10P

    0.5/10P

    0.2S/0.5/10P

    0.2/0.5/10P

    10

    15

    15

    15

    5

    (10)

    10

    15

    20

    100I1n

    250I1n

    300/5

    31.5

    80

    400/5

    31.5

    80

    500/5

    40

    100

    600/5

    50

    125

    800/5

    20

    63

    125

    1000/5

    80

    160

    1200,1250/5

    100

    160



    Double ratio:Chuangyin type LZZBJ9-12/150b/4

    Rated current ratio

    (A)

    Accuracy classes combination

    Rated output

    (VA)

     FS

    ALF

    Rated short-time thermal current

    (kA/S)

    Rated dynamic current

    ( kA)

    Measuring

    Protective

    0.2(S)

    0.5

    10P

    10-20/5

    0.2(S)/0.2(S)

    0.2(S)/0.5

    0.2(S)/10P

    0.5/10P

    10

    15

    15

    15

    20

    5

    (10)

    10

    15

    20

    1.5

    3.75

    20-40/5

    3

    7.5

    50-100/5

    8

    20

    100-200/5

    15

    37.5

    200-400/5

    30

    75

    400-800/5

    63

    130

    500-1000/5

    63

    130

    600-1200/5

    80

    160



    4. Outline Drawing:

    Chuangyin 12kV MV CT Current Transformer for Air Insulation Switchgear


    Chuangyin 12kV MV CT Current Transformer for Air Insulation Switchgear

    5.Photos:

    Chuangyin 12kV MV CT Current Transformer for Air Insulation Switchgear


    Chuangyin 12kV MV CT Current Transformer for Air Insulation Switchgear


    Chuangyin 12kV MV CT Current Transformer for Air Insulation Switchgear



    Remarks:
    Upon request we are glad to offer current transformer, voltage transformer, separable connector, cold shrink termination & joint according to other standards or with non-standard technical specs.
    The quality is assurance, the reasonable price, welcome to order, ordering or the proxy.
    Thank you very much!
