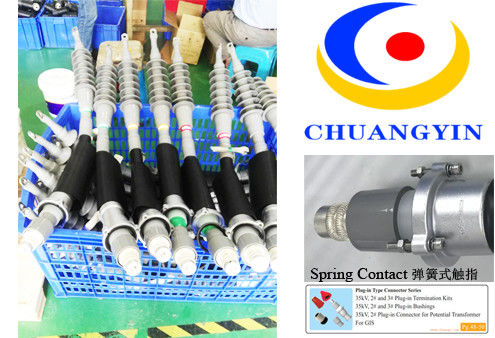

35kV 2# And 3# Plug In euromold termination kit Connector For PT

35kV 2# And 3# Plug In euromold termination kit Connector For PT

    • 35kV 2# And 3#  Plug In euromold termination kit Connector For PT
    • 35kV 2# And 3#  Plug In euromold termination kit Connector For PT
    • 35kV 2# And 3#  Plug In euromold termination kit Connector For PT
    • 35kV 2# And 3#  Plug In euromold termination kit Connector For PT
    • 35kV 2# And 3#  Plug In euromold termination kit Connector For PT
    • 35kV 2# And 3#  Plug In euromold termination kit Connector For PT
    • 35kV 2# And 3#  Plug In euromold termination kit Connector For PT
  • 35kV 2# And 3#  Plug In euromold termination kit Connector For PT

    Product Details:

    Place of Origin: China
    Brand Name: Shenzhen Chuangyin Co.,Ltd.
    Certification: Type test report
    Model Number: CY-RCT01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Carton / Plywood
    Contact Now
    Detailed Product Description
    Type: Plug-in Type Connector Series Voltage: 35kV

    We are manufacturer for Plug-in Type Connector Series
    1) 35kV, 2# and 3# Plug-in Termination Kits. For GIS.
    2) 35kV, 2# and 3# Plug-in Bushings. For GIS.
    3) 35kV, 2# Plug-in Connector for Potential Transformer. For GIS.






    Plug-in Type Connector Series

    35kV, 2# and 3# Plug-in Termination Kits

    Application:

    Chuangyin® Plug-in Termination Kits is widely applicable for connecting cables to GIS (Gas Insulated Switchgear). It is designed to mate with epoxy insulated bushing fully shielded, insulated, and sealed. Without undermining seal between bushing and GIS during installation, repairing or maintenance.

    The interface designed to comply with EN 50180 / EN 50181 interface type 2#, 3# and IEC 60228, IEC 60502 etc.



    Features:

    Made of silicone rubber with high elasticity, weather proof, aging resistance

    Fully shielded

    Used in indoor and outdoor

    Compact design

    100% factory tested

    In compliance with IEC 60228



    Construction:

    1. Epoxy Insulated Bushing

    2. Locking Halves

    3. Stress Relief Cone

    4. Plug-in Termination Kit

    5. Protection Cover 6. Pressure Spring

    7. Cable Sheath 8. Grounding Wire

    9. Cable



    Technical Data:

    Interface Type 2# 3#
    Voltage Class 35 kV 35 kV
    Rated Current 800 A 1250 A
    AC Withstand Voltage 5 min 117 kV 117 kV
    DC Withstand Voltage 15 min 104 kV 104 kV
    Partial Discharge 45 kV, ≤10 pC 45 kV, ≤10 pC
    BIL 200 kV 200 kV
    Cross Section 50 – 240 mm2 50 – 630 mm2



    Kit Contents:

    Plug-in Termination Kit Locking Halves

    Protection Cover Cable Sheath

    Braided Ground Wire CFS

    Wipers Installation Instruction

    Silicone Grease Certificate




    35kV 2# And 3#  Plug In euromold termination kit Connector For PT




























    35kV 2# And 3#  Plug In euromold termination kit Connector For PT




























    35kV 2# And 3#  Plug In euromold termination kit Connector For PT




























    35kV 2# And 3#  Plug In euromold termination kit Connector For PT































    35kV 2# And 3#  Plug In euromold termination kit Connector For PT































    Ordering Instructions:

    Product Part Number Cross Section (mm2) Diameter over insulation (mm) Code
    2# Plug-in Termination CYS-CBN2(01)-35-50 50 30 - 32 A
    CYS-CBN2(01)-35-70 70 32 - 33.4 B
    CYS-CBN2(01)-35-95 95 33.6 - 35.1 C
    CYS-CBN2(01)-35-120 120 35 - 36.6 D
    CYS-CBN2(01)-35-150 150 36.4 - 38.1 E
    CYS-CBN2(01)-35-185 185 37.8 - 40 F
    CYS-CBN2(01)-35-240 240 40 - 42 G

    3# Plug-in Termination



    CYS-CBN3(01)-35-50 50 30 - 32 A
    CYS-CBN3(01)-35-70 70 32 - 33.4 B
    CYS-CBN3(01)-35-95 95 33.6 - 35.1 C
    CYS-CBN3(01)-35-120 120 35 - 36.6 D
    CYS-CBN3(01)-35-150 150 36.4 - 38.1 E
    CYS-CBN3(01)-35-185 185 37.8 - 40 F
    CYS-CBN3(01)-35-240 240 40 - 42 G
    CYS-CBN3(01)-35-300 300 42.4 - 44.3 H
    CYS-CBN3(01)-35-400 400 45 - 47.4 I
    CYS-CBN3(01)-35-500 500 48.4 - 50.3 J
    CYS-CBN3(01)-35-630 630 52.4 - 54.3 K





    Dimensions:

    Interface Type 2# 3#
    Outline L1 (mm) 125 147.5
    L2 (mm) 140 216
    Conductor φD (mm) 39 55
    Installation Installation Position for Bushing Φ1 (mm) 107 113
    Number of Installation Hole n (pcs) 3 6
    Installation Position for Termination Φ2 (mm) 102 130
    Number of Installation Hole N (pcs) 3 3



    Technical Data:

    Interface Type 2# 3#
    Voltage Class 35 kV 35 kV
    Maximum System Voltage (Um) 42 kV 42 kV
    Rated Current 800 A 1250 A
    AC Withstand Voltage 5 min 117 kV 117 kV
    Partial Discharge 45 kV, ≤10 pC 45 kV, ≤10 pC
    BIL 200 kV 200 kV



    Ordering Instructions:

    Product Part Number
    2# Plug-in Bushing CYS-NC-2
    3# Plug-in Bushing CYS-NC-3





    Technical Data:

    Item Parameters
    Voltage Class 35 kV
    AC Withstand Voltage 5 min 117 kV
    DC Withstand Voltage 15 min 104 kV
    Partial Discharge 45 kV, ≤10 pC
    BIL 200 kV



    Kit Contents:

    Plug-in Connector for Potential Transformer

    Stopper Ring

    Locking Halves

    Wipers

    Silicone Grease

    Installation Instruction

    Certificate



    Ordering Instructions:

    Product Part Number
    2# Plug-in Connector for Potential Transformer CYS-NPT2(01)-35


    Kindly Note:
    Our Factory Products Catalog as Follow:

    I. Instrument Transformer(Epoxy Resin Type, upto72.5kV)
    i. LV & MV Current/Voltage Transformer
    ii. Electronic Instrument Transformer/LPIT/Sensor Split Core Current Transformer/Rogowski Coil
    iii. Split Core Current Transformer/Rogowski Coil

    II. Cable Accessories(EPDM, upto42kV)
    i. Separable Connector IEC/IEEE
    ii. Busbar Connection System
    iii. Switchgear Insulation Components
    iv. Cold Shrink Cable Accessories
