| Place of Origin: | ShenZhen |
| Brand Name: | Chuangyin |
| Certification: | Test Report |
| Model Number: | CY-CBN2(01)-35-95 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Carton packing for one sets, one set including three piece with Components |
| Delivery Time: | Within 7 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 36,000,00pcs per year |
| Rated Current: | 800A /1250A | Voltage Rating: | 35KV |
|---|---|---|---|
| Partial Discharge: | 45kv10pc | Application: | Install In GIS |
| AC Withstand Voltage 1 Min: | 117kV | Place: | Indoor |
| High Light: | plug in bushing for transformer,plug in type bushing |
||

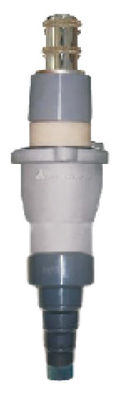

Plug In Bushing 35KV 800A Indoor GIS EN 50180-50181 Cross Section 50-240mm
1. Introduction:
Plug-in Termination Kits is suitable for GIS incoming and outgoing wire connection. It is designed to mate with epoxy insulated bushing, and connect wire to switchgear fully shielded, fully insulated, fully sealed. Your technician can install, repair or maintain equipment and power cable system without undermining seal between bushing and GIS.
Meets the standard of EN50180-50181 interface type 2#,
2.Packing:
Termination housing
Locking halves
Protection cover
Cable Sheath Braided Ground Wire
CFS
Wipers
Installation instruction
Silicone Grease
Certificate
3.Structure:
1.Epoxy Insulated Bushing
2.Locking Halves
3. Stress Relief Cone
4. Plug-in termination kit
5. Protection cover
6. pressure spring
7. Cable sheath
8. Grounding Wire
9. Cable Cable not included
4. Parameters:
| Part number | 2# | 3# |
| Voltage ratings | 35kV | 35kV |
| Rated current | 800A | 1250A |
| AC withstand voltage 5 min | 117kV | 117kV |
| DC withstand voltage 15 min | 104kV | 104kV |
| PD at ambient temperature | 45kV10pC | 45kV10pC |
|
Impulse voltage at elevated temperature |
200kV | 200kV |
| Cross section | 50 〜240mm2 | 50 〜630mm2 |
5. Selection Table:
| Part No. | 3# | |
| Dimensions | L1mm | 147.5 |
| L2mm | 216 | |
| <pDmm | 55 | |
| Installation | Bushing position 1mm | 113 |
| n | 6 | |
| 22mm | 130 | |
| N | 3 | |
Model Option:
| Model | Part No. |
| Plug-in Bushing 2# | CYS-NC-3 |
