| Place of Origin: | China |
| Brand Name: | Shenzhen Chuangyin Co.,Ltd. |
| Certification: | Type test report |
| Model Number: | CYSDJ-15/630 |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Carton / Plywood |
| Type: | CURRENT TRANSFORMER FOR ENERGY METER | Use: | ENERGY METER |
|---|---|---|---|
| Accurecy Class: | 0.1 | ||
| High Light: | ring type ct,ct current transformer |
||

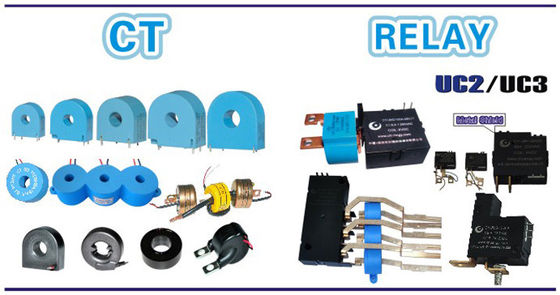

We are manufacturer for CURRENT TRANSFORMER FOR ENERGY METER
01. T Series Current Transformer
1. Features:
1. Adopted high permeability core, high accuracy, and excellent linearity performance.
2. Fully enclosed case, with high function of current isolation and nice outline.
3. Mini size, little weight and easy to install.
4. Linear output with high accuracy current.
5.DC Immunity function.
2. Application:
Single and multi-phase electronic energy meters.
3. Electrical Parameters:
1. Housing material: Anti-burning ABS.
2. Encapsulation: Anti-burning epoxy resin.
3. Ambient temperature: -40℃ ~ +75℃.
4. Insulation resistance: ≥500MΩ(DC500V).
5. Dielectric strength : 4000VAC 1mA 60S.
4. Part Number Description:
Note: if has “K” after series means CT has DC immunity function.
5. Circuit Diagram:
6. Specification:
| No. | Rated Pri. Current (A) |
Max. Current (A) |
Rated Sec. Current (mA) | Load Resistance (Ω) | AC Accuracy | DC Accuracy |
| 1 | 1.5 | 6/9 | 1/5.0/7.5 | 5/10/20/40 | 0.1/0.2/0.5 | 1.0/2.0 |
| 2 | 2.5 | 10/15 | 2.5 | 5/10/20 | 0.1/0.2/0.5 | 1.0/2.0 |
| 3 | 5 | 20/30/40/60 | 2.0/2.5/5.0 | 5/10/20 | 0.1/0.2/0.5 | 1.0/2.0 |
| 4 | 10 | 40/60/100 | 4.0/5.0/10 | 10/20 | 0.1/0.2/0.5 | 1.0/2.0 |
| 5 | 15 | 60/100 | 10/15 | 10 | 0.1/0.2/0.5 | 1.0/2.0 |
| 6 | 20 | 80/100/120 | 8.0/10/20 | 10 | 0.1/0.2/0.5 | 1.0/2.0 |
| Product No. | Size (mm) | ||||||||
| A | B | C | D | E | F | G | H | I | |
| T-01 | 19.0 | 29.0 | 15.2 | 26.4 | 9.0 | 8.0 | 2.0 | 3~10 | 50~200 |
| 19.0 | 29.0 | 15.2 | 26.4 | 8.9 | 7.1 | 2.0 | |||
| T-02 | 13.0 | 30.5 | 15.2 | 27.0 | 7.4 | ~ | ~ | ||
| T-03 | 43.5 | 18.6 | 29 | 7.0 | ~ | ~ | ~ | ||
| T-04 | 37.6 | 38.9 | 14.5 | 12.6 | ~ | ||||
| 29.8 | 29.8 | 17.0 | 8.5 | ~ | |||||
| 23.8 | 25.0 | 11.0 | 6.6 | ~ | |||||
| T-05 | 26.5 | 16.0 | 8.0 | 3~10 | 50~200 | ||||
Note: The type of output can be made as per customers’ requirements.
