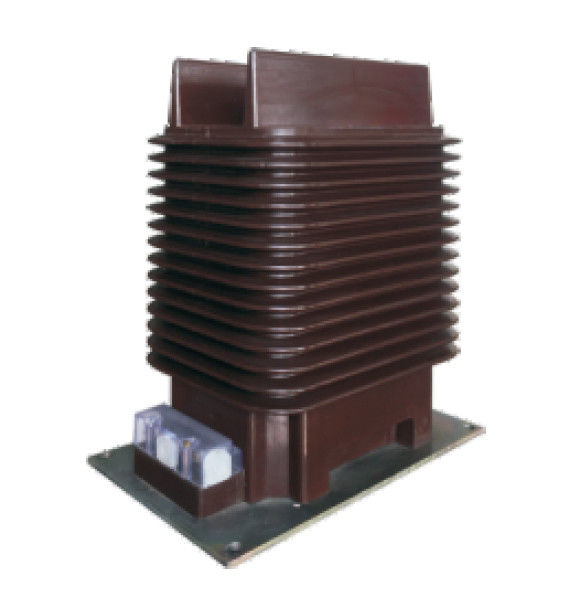

Enclosed Support Construction MV Current Transformer for Measuring and Protection​


1.Product Introduction:



LZZBJ9-36 current transformer, epoxy resin casting insulation and fully enclosed support construction, encloses the primary & secondary windings and annular core in the epoxy resin casting body. The product has large periphery insulation creepage distance, withstanding dirtiness and dampness. Be suitable for measuring electric capacity, current and protective relaying in the power system of 36k



2. Technical Data:



Main technical parameter

  1. Rated voltage: 13.8 kV or 15kV or 22kV etc
  2. Rated secondary current: 5A or 1A
  3. Highest voltage for equipment: 17.5 kV or 24kV
  4. Rated power-frequency withstand voltage: 38kV or 50kV
  5. Rated lightning impulse withstand voltage: 95 kV or 125kV
  6. Rated insulation level: 17.5/38/95 kV or 24/50/125kV

Standards: IEC60044-1.2003




3. Specification:

Rated transformation

ratio(kV)

Accuracy classes combination

Rated output

(VA)

Rated short-time thermal current (kA/S) Rated dynamic current ( kA)
Measuring Protective
0.2(S) 0.5 10P
20-200/5

0.2(S)/ 0.2(S)

0.2(S)/0.5

0.2(S)/10P

0.5/10P

0.2(S)/ 0.5/10P

0.2/ 0.5/10P

10

15

15

15

20

150I1n 375I1n
300/5 31.5 80
400/5 31.5 80
500/5 40 100
600/5 50 125
800/5 63 125
1000/5 80 160
1200~1500/5 80 160
1500-2000/5 100 160
2000~2500/5 100 160

4. Outline Drawing:
