36kv MV Indoor Current Transformer Epoxy Resin Casting Single Phase Delta Transformer

36kv MV Indoor Current Transformer Epoxy Resin Casting Single Phase Delta Transformer

  • 36kv MV Indoor Current Transformer Epoxy Resin Casting Single Phase Delta Transformer
36kv MV Indoor Current Transformer Epoxy Resin Casting Single Phase Delta Transformer
Product Details:
Place of Origin: Shenzhen
Brand Name: Chuangyin
Certification: Kema,CE,SGS,TUV
Model Number: LZZBJ10-36
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Plywood
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 36,000,00pcs per year
Contact Now
Detailed Product Description
Rated Insulation Level: 36/70/170kv Installation Site: Indoor
Usage: Measuring And Protection Standard: IEC60044-1
Material: Electromagnetic Working Environment: -30~70℃ Humid≤85%,indoor
High Light:

medium voltage current transformer

,

medium voltage instrument transformers




36kv Indoor MV Current Transformer Current Transformer Epoxy Resin Casting ​



1. Product Introduction:



LZZBJ10-36 current transformer, epoxy resin casting insulation and fully enclosed support construction, encloses primary & secondary windings and annular core in the epoxy resin casting body. The product has the large periphery insulation creepage distance, withoutstanding dirtiness and dampness. Be suitable for measuring electric capacity, and protective relaying in the power system of 36kv



2. Technical Data:



Main technical parameter

  1. Rated insulation voltage: 36/70/170kV
  2. Rated frequency: 50/60hz
  3. Installation Site: Indoo
  4. Standards: IEC60044-1(IEC61869-1&2)






3. Specification:


Rated

transformation ratio(A)

Accuary classes combination

(VA)

Rated output

(ALF) (FS) Short-time thermal current Ith(kA/S) Rated dynamic current Idyn(kA)



Measuring



Protective

0.2(S) 0.5 10P

15/5

……

200/5

0.2(S)/0.2(S)

0.2(S)/0.5

0.5/0.5

0.2(S)/10P

0.5/10P



10 15









10





15





10



5

(10)

100I1n 250I1n
300/5 25 63
400/5 31.5 80
500/5 40 100
600/5 40 100
800/5 63 130
1000/5 63 130
1500/5 80 160



Two Secondary Double Ratio

Rated

transformation ratio(A)

Accuary classes combination

(VA)

Rated output



(ALF)

(FS) Short-time thermal current Ith(kA/S) Rated dynamic current Idyn(kA)



Measuring



Protective

0.2(S) 0.5 10P

15-30/5

20-40/5

……

200-400/5

0.2(S)/0.2(S)

0.2(S)/0.5

0.5/0.5

0.2(S)/10P

0.5/10P



10 15







10



15





10



5

(10)

75I1n 187.5I1n
300-600/5 31.5 80
500-1000/5 40 100
600-1200/5 50 130
750-1500/5 80 160


4. Outline Drawing:

36kv MV Indoor Current Transformer Epoxy Resin Casting Single Phase Delta Transformer 0





5.Photos:

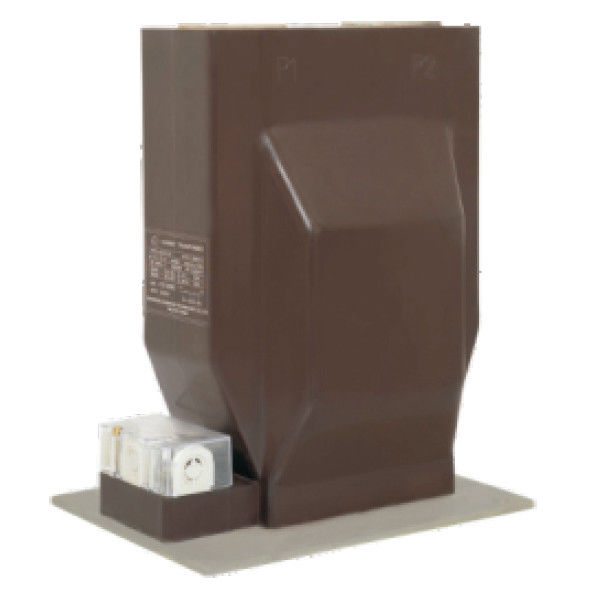

36kv MV Indoor Current Transformer Epoxy Resin Casting Single Phase Delta Transformer 1



Contact Details
Shenzhen Chuangyin Co., Ltd.

Contact Person: Mr. Dieky Lin

Tel: +86 138 2379 0397

Fax: 86-0755-8600-0614
