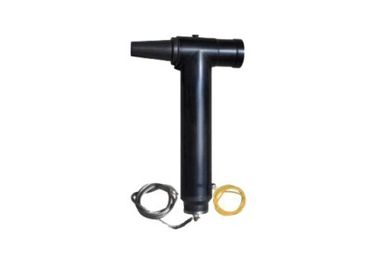

Black Separable Connectors 630A 35kv Surge Arrester protect Transformer , switchgear equipment

Black Separable Connectors 630A 35kv Surge Arrester protect Transformer , switchgear equipment

    • Black Separable Connectors 630A 35kv Surge Arrester protect Transformer , switchgear equipment
    • Black Separable Connectors 630A 35kv Surge Arrester protect Transformer , switchgear equipment
  • Black Separable Connectors 630A 35kv Surge Arrester protect Transformer , switchgear equipment

    Product Details:

    Place of Origin: China
    Brand Name: Chuangyin
    Certification: Type test report
    Model Number: CYSESH-YH5WZ-51/134

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Carton packing for one sets, one set including three piece with Components
    Delivery Time: Within 7 days
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: 1000Pcs/week
    Contact Now
    Detailed Product Description
    Use: Plug's Built-in Valve Of Surge Arretser Has A Good Non-linear Class Voltage: 35kv
    Color: Black Material: Silicone Grease
    Rated Current: 2000A BIL: 125kv

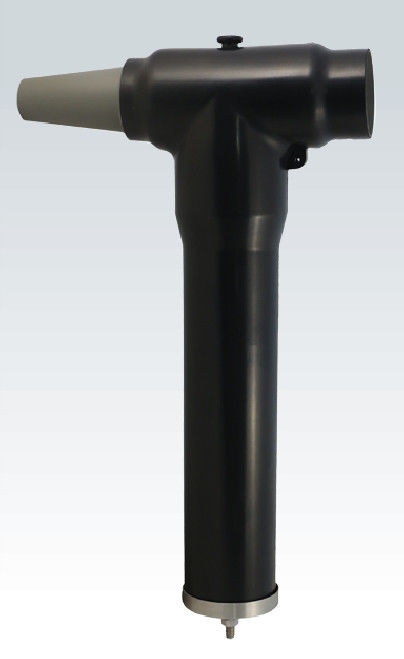

    CYSESH-YH5WZ-51/134 Separable Connectors 630A 35kv Surge Arrester protect Transformer,switchgear equipment



    Chuangyin® Surge Arrester is widely applicable for protecting apparatus, including transformers, switchgear equipment, cable and accessories from high voltage surges resulting from lightning or switching. It mates with Tee Connector in 630 A power network.

    The interface designed to comply with EN 50180 / EN 50181 630A interface type E, IEC 60099.4, GB 11032 etc.



    Features

    Made of high quality EPDM rubber

    Protecting apparatus from high voltage surges resulting from lightning or switching

    Fully shielded and connected braid

    100% factory tested

    In compliance with IEC 60099.4, GB 11032 ect.







    Technical Data

    Item Parameters
    Metal (Zn) Oxide Varistor Arrester (MOA) YH5WZ-51/134
    System Nominal Voltage (kV) 35
    Max. Voltage Class (Um) (kV) 51
    Max. Continuous Operating Voltage (kV) 40.8
    Voltage of DC 1mA Current (kV) ≥73
    Lightning Impulse Residual Voltage (kV) ≤134
    Steep Current Residual Voltage (kV) ≤154
    Switching Impulse Residual Voltage (kV) ≤114
    Long Duration Current Impulse Withstand (A) 400
    High Current Impulse Withstand (kA) 100
    5min EPDM Insulation Housing Withstand (kV) 117





    Kit Contents

    Surge Arrester Silicone Grease
    Stud Wipers
    Linking Rod Exhaust Strips
    Wrench Installation Instruction
    Fixing Clip













    Ordering Instructions

    Product Part Number
    51/134 kV Surge Arrester CYSESH- YH5WZ-51/134









    Black Separable Connectors 630A 35kv Surge Arrester protect Transformer , switchgear equipment
