| Place of Origin: | Shenzhen |
| Brand Name: | Chuangyin |
| Certification: | Kema,CE,SGS,TUV |
| Model Number: | JDZX16-12R |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Carton packing for one sets, one set including three piece with Components |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 36,000,00pcs per year |
| Rated Insulation Level: | 12 KV | Ustage: | Switch Cabinet |
|---|---|---|---|
| Type: | JDZX 8-12R | Rated Primary Voltage: | 11/√3 |
| Material: | Epoxy Resin | Frequency: | 50/60HZ |
| High Light: | medium voltage transformer,medium voltage potential transformer |
||

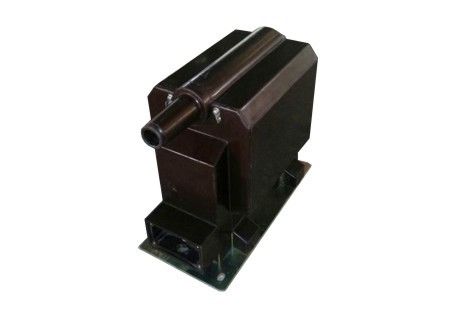

JDZX16-12R 12kV Indoor Single-Phase Transformer MV Voltage Transformer Potential transformer
1.Product Introduction:
Epoxy resin casting and full enclosed construction, is used indoor switch cabinet to measure the voltage, electric energy and protective relaying in single phase or three phase AC circuit with the frequency 50Hz or 60Hz and highest voltage for equipment 12 kV.
The iron core adopts advanced cold-rolled silicon steel sheet. High voltage outgoing line of primary winding was fetched out from top of the product; outgoing line of secondary winding was fetched out
from transverse side of the product.
The primary cone accords with IEEE 386-2006 figure 7.
Usage Terms
J: Voltage transformer
D: Single-phase
Z: Casting insulation
X: Residual voltage winding
18: Design No.
12: Rated voltage
R: With fuse for protection
1. Rated primary voltage: 20/√3or 15/√3 etc.
2. Technical standard accords with IEC 60044-2:2003 Part2 Instrument transformers-Part2: inductive voltage transformers
| Type |
Rated primary voltage (kV) |
Rated secondary voltage (kV) | Accuracy classes combination |
Rated output (VA) |
Thermal limiting current (VA) |
Rated insulation level(kV) |
| JDZX18-12R |
15/√3 20/√3 22/√3 |
0.1/√3 0.11/√3 |
0.2 | 30 | 300 |
17.5/38/95 24/50/125 |
| 0.5 | 50 | |||||
| 1 | 80 | |||||
|
0.1/√3/0.1/3 0.11/√3/0.11/3 |
0.2/6P(3P) | 15/50 | 300 | |||
| 0.5/6P(3P) | 30/50 | |||||
| 0.5/0.5/6P(3P) | 50/50/150 |
Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.
