Multi Winding Epoxy Resin Outdoor Current Transformer For Metering Current

Multi Winding Epoxy Resin Outdoor Current Transformer For Metering Current

    • Multi Winding Epoxy Resin Outdoor Current Transformer For Metering Current
    • Multi Winding Epoxy Resin Outdoor Current Transformer For Metering Current
    • Multi Winding Epoxy Resin Outdoor Current Transformer For Metering Current
    • Multi Winding Epoxy Resin Outdoor Current Transformer For Metering Current
    • Multi Winding Epoxy Resin Outdoor Current Transformer For Metering Current
    • Multi Winding Epoxy Resin Outdoor Current Transformer For Metering Current
    • Multi Winding Epoxy Resin Outdoor Current Transformer For Metering Current
  • Multi Winding Epoxy Resin Outdoor Current Transformer For Metering Current

    Product Details:

    Place of Origin: ShenZhen
    Brand Name: Chuangyin
    Certification: Kema,CE,SGS,TUV
    Model Number: LZZBW-12; LZZBW-17.5

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: negotiable
    Packaging Details: Carton packing for one sets, one set including three piece with Components
    Delivery Time: Within 7 days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 36,000,00pcs per year
    Contact Now
    Detailed Product Description
    Rated Insulation Level: 12/28/75KV;17.5/38/95KV Rated Secondary Current: 5A/ 1A
    Usage: Protective Relaying In The Electrical System Measuring Electric Capacity, Current Highest Voltage: 12KV/17.5KV
    Type: Dry Type Accuracy: Mini Precision

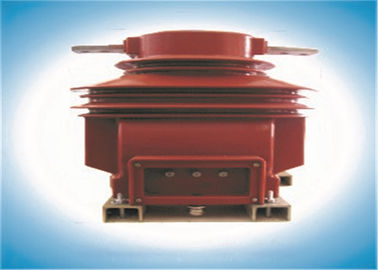

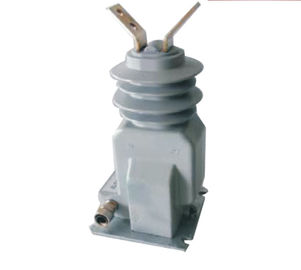

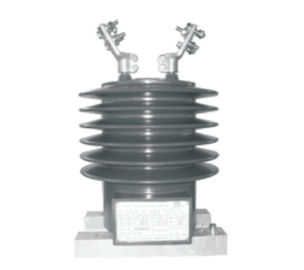

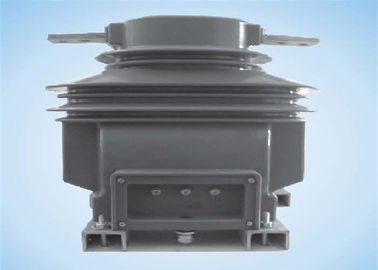

    17.5kV Medium Current Transformer Single-Phase Epoxy Resin Type Outdoor For Metering Current Usage Multi-Winding​ Epoxy Resin Casting


    1.Product Introduction:


    LZZBW-12(17.5) current transformer Adopts outdoor resin casting and belongs to support type full-closed structure, encloses primary & secondary windings and annular core in the epoxy resin casting body. The product has the feature of light weight, omni-directional installation, withstanding nastiness and dampness. It is widely used for measuring current, electric energy and protective relaying in the electrical system with the rated frequency 50Hz or 60Hz and highest voltage for equipment 12 kV (Up to 17.5kV).



    Main technical parameter

    1. Rated voltage: 12/28/75KV;17.5/38/95KV

    2. Rated Frequency:50/60HZ

    3: Installation Site: Outdoor

    4. Standards: IEC60044-1.2



    Specification:

    Rated primary current (A) Secondary accuracy classes combination

    Rated output

    (VA)

    Rated short-time thermal current (kA/S) Rated dynamic current ( kA)
    0.2(S) 0.5 10P
    50-200/5

    0.2(S)/0.2(S)

    0.2(S)/0.5

    0.2/(S)10P

    0.5/10P

    0.2S/0.5/10P

    0.2/0.5/10P

    10

    15

    15

    15

    20

    150I1n 375I1n
    300/5 31.5 80
    400/5 31.5 80
    500/5 40 100
    600/5 50 125
    800/5 63 125



    Rated primary current (A) Secondary accuracy classes combination

    Rated output

    (VA)

    Rated short-time thermal current (kA/S) Rated dynamic current ( kA)
    0.2(S) 0.5 10P
    50-200/5

    0.2(S)/0.2(S)

    0.2(S)/0.5

    0.2/(S)10P

    0.5/10P

    0.2S/0.5/10P

    0.2/0.5/10P

    10

    15

    15

    15

    20

    8 20
    300/5 15 37.5
    400/5 20 50
    500/5 30 75
    600/5 50 125
    800/5 63 125



    Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

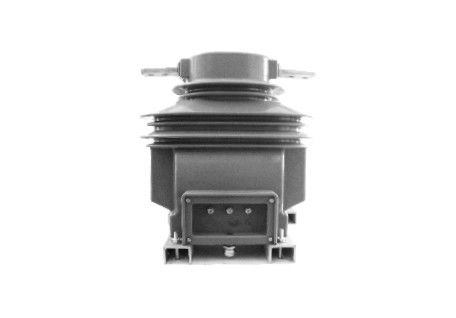

    Outline drawing



    Multi Winding Epoxy Resin Outdoor Current Transformer For Metering CurrentMulti Winding Epoxy Resin Outdoor Current Transformer For Metering Current

    Contact Details
    Shenzhen Chuangyin Co., Ltd.

    Contact Person: Isabel

    Send your inquiry directly to us (0 / 3000)
