17.5(24)kV Medium Current Transformer Outdoor Single-Phase Epoxy Resin Mini Precision Type High Electrical Efficiency

17.5(24)kV Medium Current Transformer Outdoor Single-Phase Epoxy Resin Mini Precision Type High Electrical Efficiency

  • 17.5(24)kV  Medium Current Transformer Outdoor Single-Phase Epoxy Resin Mini Precision Type High Electrical Efficiency
  • 17.5(24)kV  Medium Current Transformer Outdoor Single-Phase Epoxy Resin Mini Precision Type High Electrical Efficiency
  • 17.5(24)kV  Medium Current Transformer Outdoor Single-Phase Epoxy Resin Mini Precision Type High Electrical Efficiency
  • 17.5(24)kV  Medium Current Transformer Outdoor Single-Phase Epoxy Resin Mini Precision Type High Electrical Efficiency
  • 17.5(24)kV  Medium Current Transformer Outdoor Single-Phase Epoxy Resin Mini Precision Type High Electrical Efficiency
  • 17.5(24)kV  Medium Current Transformer Outdoor Single-Phase Epoxy Resin Mini Precision Type High Electrical Efficiency
  • 17.5(24)kV  Medium Current Transformer Outdoor Single-Phase Epoxy Resin Mini Precision Type High Electrical Efficiency
  • 17.5(24)kV  Medium Current Transformer Outdoor Single-Phase Epoxy Resin Mini Precision Type High Electrical Efficiency
  • 17.5(24)kV  Medium Current Transformer Outdoor Single-Phase Epoxy Resin Mini Precision Type High Electrical Efficiency
17.5(24)kV  Medium Current Transformer Outdoor Single-Phase Epoxy Resin Mini Precision Type High Electrical Efficiency
Product Details:
Place of Origin: ShenZhen
Brand Name: Chuangyin
Certification: Kema,CE,SGS,TUV
Model Number: LMZW-17.5(24)
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: Carton packing for one sets, one set including three piece with Components
Delivery Time: Within 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 36,000,00pcs per year
Contact Now
Detailed Product Description
Type: Single-Phase Rated Insulation Level: 17.5KV
Installation Site: Outdoor Rated Secondary Current: 5A
Net Weight: 64KG Package: 1/pcs/Plywood =640*496*710
Usage: Current Usage
High Light:

medium voltage current transformer

,

single phase current transformer

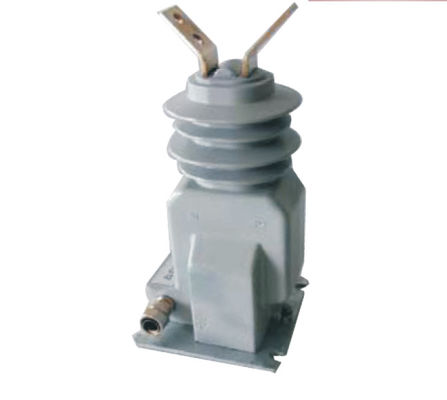

17.5(24)kV Medium Current Transformer Outdoor Single-Phase Epoxy Resin Mini Precision Type High Electrical Efficiency​


1.Product Introduction:


Epoxy resincasting insulation and fully enclosed support construction, encloses the primary & secondary windings and annular core in the epoxy resin casting body. The product has large periphery insulation creep distance, withstanding dirtiness and dampness.
Be suitable for measuring electric capacity, current and protective relaying in the power system of 17.5kV (Up to 24kV).



1. Rated insulation level:17.5/38/95 kV
                                        24/50/125 kV
2, Rated frequency:50/60Hz
3, Installation site:Outdoor
4, Technical standard:IEC 60044-1
                                   (IEC 61869-1&2)


Specification:

Rated transformation

ratio(A)

Accuracy classes combination

Rated output

(VA)

Measuring Protective
0.2(S) 0.5 10P
400/5

0.2(S)/ 0.2(S)

0.2(S)/0.5

0.5/0.5

0.2(S)/10P10

0.5/10P10

15

15

15

500/5 15 15 15
15 15 15
600/5 20 20 20
800/5 20 20 20
1000/5 20 20 20
2000/5 30 30 30
3000/5 30 30 30
40 40 40
4000/5
5000/5 40 40 40



Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.



Outline drawing



17.5(24)kV  Medium Current Transformer Outdoor Single-Phase Epoxy Resin Mini Precision Type High Electrical Efficiency 017.5(24)kV  Medium Current Transformer Outdoor Single-Phase Epoxy Resin Mini Precision Type High Electrical Efficiency 117.5(24)kV  Medium Current Transformer Outdoor Single-Phase Epoxy Resin Mini Precision Type High Electrical Efficiency 2
