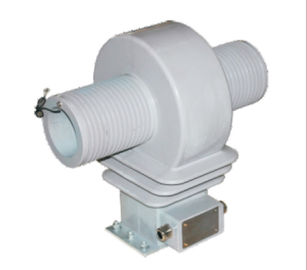

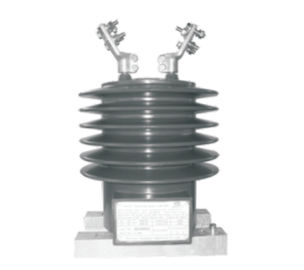

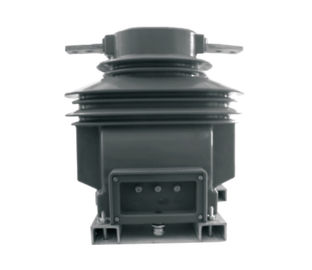

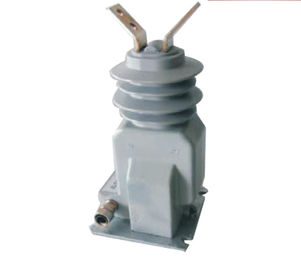

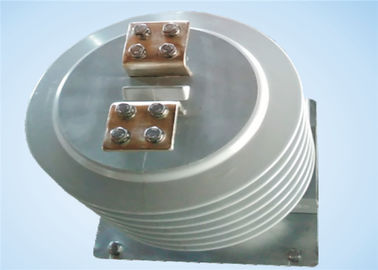

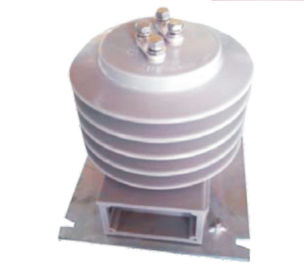

36kV MV Current Transformer Outdoor Single Phase Epoxy Resin Type Multi Winding Ring Cabinet

36kV MV Current Transformer Outdoor Single Phase Epoxy Resin Type Multi Winding Ring Cabinet

    • 36kV MV Current Transformer Outdoor Single Phase Epoxy Resin Type Multi Winding Ring Cabinet
    • 36kV MV Current Transformer Outdoor Single Phase Epoxy Resin Type Multi Winding Ring Cabinet
    • 36kV MV Current Transformer Outdoor Single Phase Epoxy Resin Type Multi Winding Ring Cabinet
    • 36kV MV Current Transformer Outdoor Single Phase Epoxy Resin Type Multi Winding Ring Cabinet
    • 36kV MV Current Transformer Outdoor Single Phase Epoxy Resin Type Multi Winding Ring Cabinet
    • 36kV MV Current Transformer Outdoor Single Phase Epoxy Resin Type Multi Winding Ring Cabinet
    • 36kV MV Current Transformer Outdoor Single Phase Epoxy Resin Type Multi Winding Ring Cabinet
    • 36kV MV Current Transformer Outdoor Single Phase Epoxy Resin Type Multi Winding Ring Cabinet
  • 36kV MV Current Transformer Outdoor Single Phase Epoxy Resin Type Multi Winding Ring Cabinet

    Product Details:

    Place of Origin: ShenZhen
    Brand Name: Chuangyin
    Certification: Kema,CE,SGS,TUV
    Model Number: LZZB-36

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: negotiable
    Packaging Details: Carton packing for one sets, one set including three piece with Components
    Delivery Time: Within 7 days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 36,000,00pcs per year
    Contact Now
    Detailed Product Description
    Type: Epoxy Resin Rated Insulation Level: 36KV
    Installation Site: Outdoor Rated Secondary Current: 5A
    Package: 1/pcs/Plywood =420*370*770mm Net Weight: Three Secondary Windings, Each Winding Can Have Tap

    36kV Medium Current Transformer Outdoor Single-Phase Epoxy Resin Type Multi-Winding Ring Cabinet / Inflatable Cabinet


    1. Product Introduction:



    Epoxy resin casting insulation and fully enclosed support construction, encloses the primary & secondary windings and annular core in the epoxy resin casting body. The product has large periphery insulation creepage distance, withstanding dirtiness and dampness. Be suitable for measuring electric capacity, current and protective relaying in the power system of
    36kV (Up to 40.5 kV).



    Technical Data

    1. Rated insulation level: 36/70/170 kV
    2, Rated frequency:50/60Hz
    3, Installation site:Outdoor
    4, Technical standard:IEC 60044-1
                                       (IEC 61869-1&2)





    Single ratio

    Rated current ratio (A) Accuracy classes combination

    Rated output

    (VA)

    FS ALF Rated short-time thermal current (kA/S) Rated dynamic current ( kA)
    Measuring Protective
    0.2(S) 0.5 10P
    30-200/5

    0.2(S)/0.2(S)

    0.2(S)/0.5

    0.2(S)/10P

    0.5/10P

    10

    15

    15

    20



    20

    25

    5

    (10)

    10

    15

    20

    150I1n 375I1n
    300/5 31.5 80
    400/5 40 100
    500/5 50 100
    600/5 63 130
    800/5 80 160



    Double ratio

    Rated current ratio (A) Accuracy classes combination

    Rated output

    (VA)

    FS ALF Rated short-time thermal current (kA/S) Rated dynamic current ( kA)
    Measuring Protective
    0.2(S) 0.5 10P
    30-60/5

    0.2(S)/0.2(S)

    0.2(S)/0.5

    0.2(S)/10P

    0.5/10P



    15

    20



    15

    20



    20

    25

    5

    (10)

    10

    15

    20

    2 5
    50-100/5 8 20
    100-200/5 15 37.5
    200-400/5 30 75
    400-800/5 63 130

    Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.



    Outline drawing

    36kV MV Current Transformer Outdoor Single Phase Epoxy Resin Type Multi Winding Ring Cabinet
