| Place of Origin: | ShenZhen |
| Brand Name: | Chuangyin |
| Certification: | Test Report |
| Model Number: | LMZB10-11 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Carton packing for one sets, one set including three piece with Components |
| Delivery Time: | Within 7 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 36,000,00pcs per year |
| Type: | Single-Phase | Rated Secondary Current: | 5A, 1A |
|---|---|---|---|
| Rated Frequency: | 50/60HZ | Power Frequency Withstand Voltage: | 3kV |
| Installation Site: | Indoor | Standards: | IEC60044-1.2003 /GB1208-2006 |
| High Light: | busbar type current transformer,bushing current transformer |
||

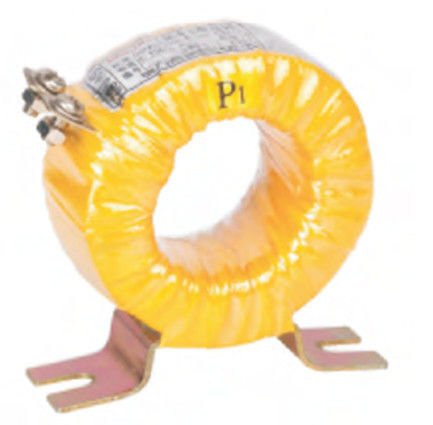

Low Voltage Current Transformer Indoor Single-Phase Epoxy Resin Type
1. Main Feature.
It’s belongs to busbar type current transformer with small size, Rated frequency is 50Hz, indoor working under 0.5kV and 0.66kV. for measuring current energy and protecting relaying purpose.
2. Standard
IEC60044-1
3. Construction Characters
Cold-rolled Silicon steel winded the CT average Secondary windings and match bottom plate for installation.
4. Technical Parameter
1) Accuracy :class0.2, class0.5, class0.5s
2) Rated Voltage(kV):0.5kV
3) Rated Frequency:50Hz
4) Rated primary Current:5-2000A
5) Rated Secondary Current:5A,1A
6) Long time working under 120% rated current
7) Power-frequency withstand voltage on secondary winding to ground:3kV/1min,non sparking.
| Model No. | Current Ratio | Np | Rated Output(AV) | ||
| 0.2 | 0.5 | 0.5S | |||
|
LM-0.5 |
30 | 5 | 5-3.75 | 5-3.75 | 5-3.75 |
| 50 | 3 | 5-3.75 | 5-3.75 | 5-3.75 | |
| 75 | 2 | 5-3.75 | 5-3.75 | 5-3.75 | |
| 100 | 2 | 5-3.75 | 5-3.75 | 5-3.75 | |
| 150 | 1 | 5-3.75 | 5-3.75 | 5-3.75 | |
| 200 | 1 | 5-3.75 | 5-3.75 | 5-3.75 | |
| 250,300 | 1 | 5-3.75 | 5-3.75 | 5-3.75 | |
| 400,500 | 1 | 5-3.75 | 5-3.75 | 5-3.75 | |
| 600 | 1 | 10-3.75 | 10-3.75 | 10-3.75 | |
5.Useage Terms
Installation Site: Indoor
Ambient Temperature: -5℃-+40℃.
Ambient Humidity: RH≤80%
Altitude: ≤1000m
Be aware with gas, steam, chemical deposit; any exposition, corrosive materials and without shock and impact.
