Name: Outdoor Mixed MV Current Transformer Three Single Phase Combined Type
Brand: Chuangyin
SKU: LSZZW-24
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (128 reviews)

Home Products MV Current Transformer

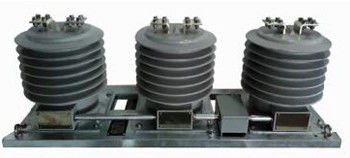

Outdoor Mixed MV Current Transformer Three Single Phase Combined Type

Product Details:

Place of Origin:	ShenZhen
Brand Name:	Chuangyin
Certification:	Test Report
Model Number:	LSZZW-24

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiable
Packaging Details:	Carton packing for one sets, one set including three piece with Components
Delivery Time:	Within 7 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	36,000,00pcs per year

Contact Now

Detailed Product Description

Type:	Combined Transformer	Rated Current Ratio:	5-10/5 Up To 500-1000/5A
Accuracy:	0.2S 0.5S	Function:	Improve Anti-Pollution
Installation Site:	Exterior	Material:	Epoxy Resin
High Light:	medium voltage current transformer , medium voltage instrument transformers

MV Voltage Transformer Outdoor JLDZXW1-17.5F 50Hz or 60Hz Cast-resin insulated

1. Introduction:

This three phase combined VTs consists of three single phase VTs, P1, P2 series connected with phase A, B, C. Secondary leads in junction box is easy for wiring and testing. Use epoxy resin insulation stunt structure for outdoor installation. Applicable for highest voltage for equipments no more than 24kV for metering/measuring measurement in power system.

2. Technical Data

1 .Installation site Outdoor

2. Rated Frequency 50/60Hz

3. Burden power factor COSФ=0.8(lagging)

4. Technical standard accords wiht IEC 60044-1&2

IEC 61869-1&2&3

3.Specification:

Type	Rated Ratio(A)	Accuracy	Ratio Output(VA)			Short-time Thermal Current Ith(kA/1s)	Rated Dynamic Current Idyn(kA)
			Protective		Protection
			0.2(S)	0.5	10P
LSZZW-24	5-200/5	0.2(S)/0.2(S) 0.2(S)/0.5 0.2(S)/10P 0.5/10P	10 15	15 15	10 15	80×I1n	200×I1n
	300/5
	400/5
	500/5
	600/5
	800/5
	1000/5

Note: Upon request we are glad to offer transformers according to other technical specs.

Application:

Use for highest voltage for equipments no more than 24kV, for current measurement in power system.

Features:

1. Use high properties iron core to meet high accuracy, big burden etc.
2. Use epoxy resin cast insulation structure to improve anti-pollution, anti-moisture etc.
3. Use full-sealed cast insulation type

Outline drawing:

Outdoor Mixed MV Current Transformer Three Single Phase Combined Type 0
