Bushing Type Medium Voltage Instrument Transformers Indoor For Busbar Connecting

Product Details:

Place of Origin:	Shenzhen
Brand Name:	Chuangyin
Certification:	KEMA,SGS,TUV,UL
Model Number:	CY-EVTDC2

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negetiable
Packaging Details:	36,000,00pcs per year
Payment Terms:	L/C, T/T, D/P, D/A, Western Union,
Supply Ability:	36,000,00pcs per year

Contact Now

Detailed Product Description

Insulation Level:

12/42/75kv

Ceertificate:

KEMA,SGS,TUV,UL

Installation Site:

Indoor

Frequency:

50hz/60hz

Highlight:

medium voltage potential transformer

single phase voltage transformer

Electric voltage transformer/voltage Sensor/LPVT (Bushing Type)

1. Apply to
≤ 24kV busbar connecting system with screened separable connector

2. Application
♦ Voltage sensor apply to voltage measurement of connecting busbar with screened cable connector in medium voltage gas insulation switchgear of smart grid;
♦ voltage sensor should be installed in the tail of the screened cable connector to replace the position of original insulation plug.

3. Technical Data:

Model		CY-EVTDC2-10
Max. system voltage		12kV
Insulation level		12/42/75kV
lighting impulse withstand voltage		75kV
Rated voltage ratio	phase voltage	(10000A/3)/(3.25A/3) V
	zero sequence voltage	(10000A/3)/ (6.5/3) V
Phase voltage- Measuring Accuracy		0.5
zero sequence voltage-Protection Accuracy		1 (3P)
Burden (load resistance)		>10MQ
Rated voltage factor		1.2Un continue /1.9Un/8h
Frequency		50/60 Hz
Operating temperature		-40°C to +70°C
LPVT type		Phase voltage + Zero sequence VT
Installation method and size		Outer cone bushing type
		IEC C type bushing IEC C type bushing 15kV/630A 24kV/630A
Standard		GB/T 20840.7 (GB/T 20840.6) IEC 60044-7 (IEC 61869-6)
Connecting type		aviation plug—lead terminal
Connecting cable		RVSP Shield line L = 3 m (length can be customized)

4. Outline Drawing:

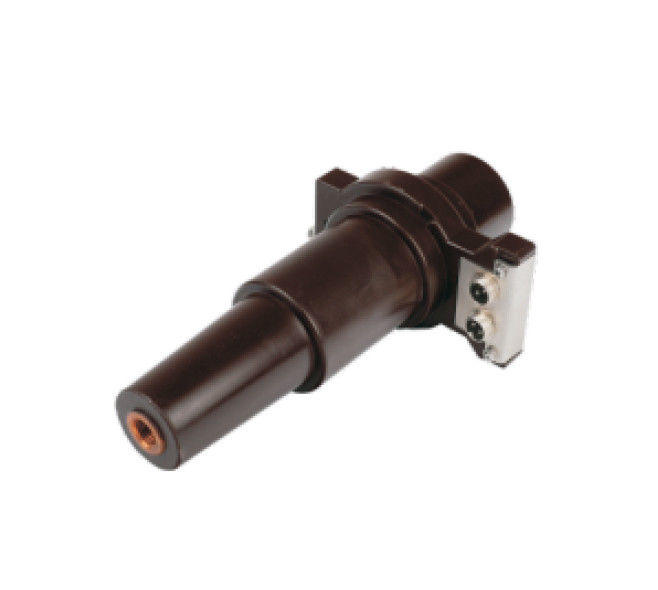

Bushing Type Medium Voltage Instrument Transformers Indoor For Busbar Connecting

5.phots

Bushing Type Medium Voltage Instrument Transformers Indoor For Busbar Connecting
