JDZW14-12 12kV Outdoor Single-Phase Epoxy Resin Type MV Voltage Transformer

JDZW14-12 12kV Outdoor Single-Phase Epoxy Resin Type MV Voltage Transformer

  • JDZW14-12 12kV Outdoor Single-Phase Epoxy Resin Type MV Voltage Transformer
  • JDZW14-12 12kV Outdoor Single-Phase Epoxy Resin Type MV Voltage Transformer
  • JDZW14-12 12kV Outdoor Single-Phase Epoxy Resin Type MV Voltage Transformer
  • JDZW14-12 12kV Outdoor Single-Phase Epoxy Resin Type MV Voltage Transformer
  • JDZW14-12 12kV Outdoor Single-Phase Epoxy Resin Type MV Voltage Transformer
JDZW14-12 12kV Outdoor Single-Phase Epoxy Resin Type MV Voltage Transformer
Product Details:
Place of Origin: ShenZhen
Brand Name: Chuangyin
Certification: IEEE/ANSI,CE,ICE
Model Number: JDZW14-12
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: Plywood
Payment Terms: L/C, T/T
Supply Ability: 36,000,000pcs per year
Contact Now
Detailed Product Description
Load Power Factor: Cos=0.8 (lagging) Type: Epoxy Resin
Rated Frequency: 50/60HZ Highest Voltage: 12KV
Installation Site: Outdoor Standsrd Compliant: IEC 60044-2 IEC 61869-1&3
High Light:

medium voltage potential transformer

,

single phase voltage transformer

JDZW14-12 12kV Outdoor Single-Phase Epoxy Resin Type MV Voltage Transformer



Description

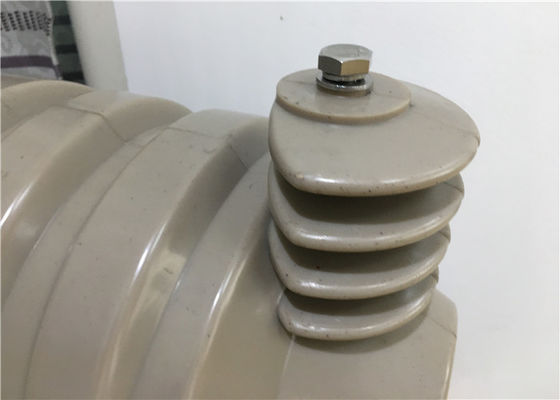

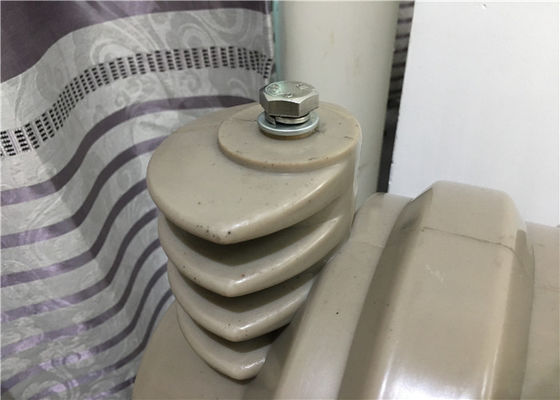

Epoxy resin casting and full-closed construction, is widely used for measuring voltage, electric energy and protective relaying in the single-phase or three phase power system with the frequency 50Hz or 60Hz and highest voltage for equipment 12kV.



Technical Data:

1,Installation site: Outdoor
2,Rated frequency: 50/60Hz
3,Burden power factor: cosΦ=0.8 (lagging)
4,Technical standard: IEC 60044-2(IEC 61869-1&3)



Specification:



Type

Rated primary

Voltage

(kV)

Rated secondary

Voltage

(kV)

Accuracy classes

combination

Rated output (VA)

Thermal limiting

Output

(VA)

Rated

Insulation level

(kV)

JDZW14-12 11 0.11 0.2 50 600 12/28/75
0.5 100
1 150
0.11/0.11 0.2/0.2 25/25 300/300
0.2/0.5 25/50
0.11/0.22 0.2/6P 25/800 800
0.5/6P 50/800



Note: Upon request we are glad to offer transformers according to other technical specs.





Outline Drawing:
