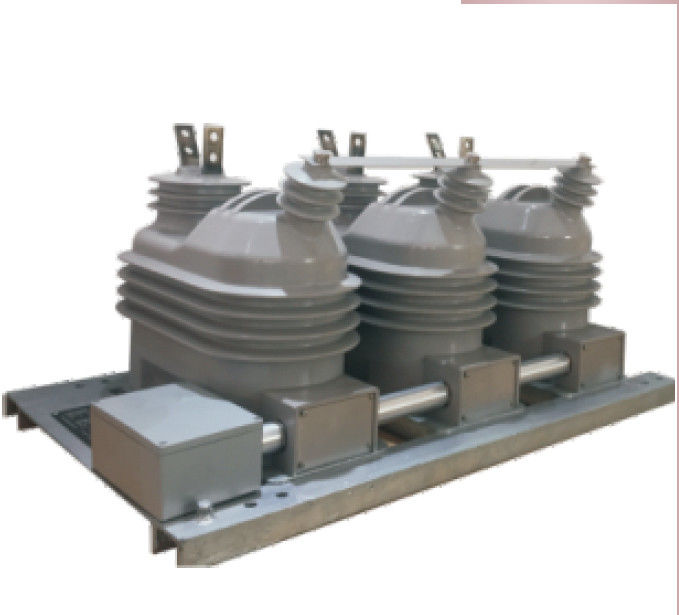

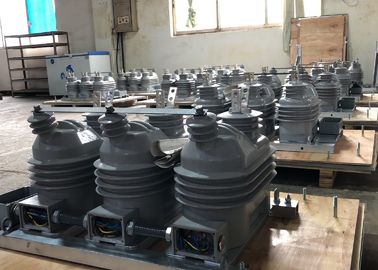

JLSZXW3-17.5F 17.5kV Outdoor Three-Phase Epoxy Resin Type Combined MV Voltage Transformer
The transformer is made up of three single phase combined transformers.
It can be used outdoor, Its highest voltage for equipment can be 17.5kV.
Technical Data
1.Installation site Outdoor
2.Rated Frequency 50/60Hz
3.Burden power factor COSФ=0.8(lagging)
4.Technical standard IEC 60044-1&2, IEC 61869-1&2&3
Specification
| Rated primary Voltage(kV) |
Rated secondary Voltage(kV) |
Accuracy classes | Rated output(VA) | Rated current ratio (A) |
Accuracy class |
Rated output |
Rated Insulation level (kV) |
|
10/√3 11/√3 12.47/√3 13.8/√3 15/√3
|
100/√3 110/√3 120/√3 100 110 120 |
0.2 0.5 1 |
15 30 50 |
5-10/5 |
0.2S 0.2 0.5S 0.5 1 |
10 12.5 15 |
12/28/75 17.5/38/95 |
| 10-20/5 | |||||||
| 15-30/5 | |||||||
| up...to... | |||||||
| 200-400 | |||||||
| 300-600 | |||||||
| 400-800 | |||||||
| 500-1000 | |||||||
| 600-1200 |
Note:Upon request we are glad to offer transformers according to other technical specs.
Outline drawing
Wiring diagram
