High Precision Rogowski Coil Current Sensor Parallel Cables Current Balance Detector Substation

High Precision Rogowski Coil Current Sensor Parallel Cables Current Balance Detector Substation

  • High Precision Rogowski Coil Current Sensor Parallel Cables Current Balance Detector Substation
  • High Precision Rogowski Coil Current Sensor Parallel Cables Current Balance Detector Substation
  • High Precision Rogowski Coil Current Sensor Parallel Cables Current Balance Detector Substation
  • High Precision Rogowski Coil Current Sensor Parallel Cables Current Balance Detector Substation
High Precision Rogowski Coil Current Sensor Parallel Cables Current Balance Detector Substation
Product Details:
Place of Origin: China
Brand Name: CY-Group
Certification: KEMA CE ISO SGS TUV UC3
Model Number: CY-RAM2000
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: NEGOTIABLE
Packaging Details: Plymood
Delivery Time: 3-8 days
Payment Terms: L/C, TT,D/A,D/P
Supply Ability: 3600000pcs/year
Contact Now
Detailed Product Description
Material: Epoxy Resin Frequency Range: 10 Hz To 20 KHz (-3dB)
Installation Site: Indoor Current Range: 2000A
Linearity: ±0.3% (5%~120%In) Standard: GB 20840,GB 4208-2008,IEC/EN 61869,IEEE C57.133.3,IEC 60529
Accuracy: ±1%(5%~120%In) @45-65Hz Power Supply: 4*AA| MN1500|LR6 Battery (external Adapter 9~12V DC)
Temperature Coefficient: ± 0.08 % /℃ Of The Reading Data
High Light:

flexible current transformer

,

flexible ct

High Precision CY-RAM2000 Parallel-cables current balance detector Substation Use

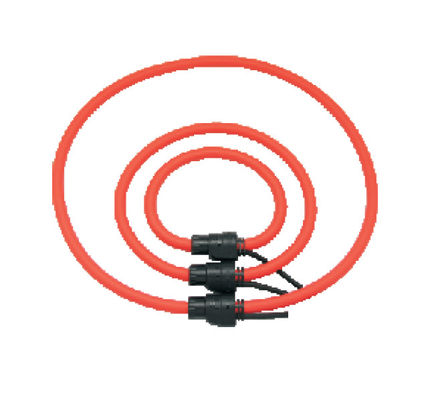

‘CY-RAM2000 parallel-cables current balance detector’ is designed for easy installation in a small space without removing the main bus or cable. It consists of two parts: flexible rogowski coil probe and electronic modules with a display.The instrument can simultaneously display two wires AC current, and also shows the current difference & current unbalanced degree between two wires. Mainly used for various power bus current measurement, and two current balance detection.

Features:

Flexible,lightweight, beautiful appearance

Simple and quick installation in small space

without high voltage in secondary open circuit

No iron core saturation and damage when overload

Excellent linearity

Multi-size optional

Application:

General measurement and protection for strong mobility or space-constrained or uninterrupted power systems

Power instrumentation, electronic multi-function energy meter and field calibrator, instrumentation measurement and protection

E.g.

parallel-cables bus current balance detection

Three-phase load current balance detection of power system;

Current detection of large load power system lines.



Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs..
