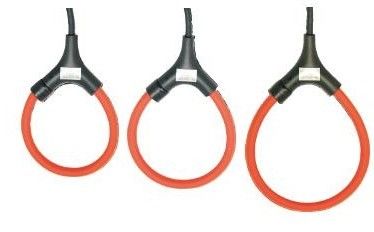

10A-10KA Rogowski Coil Current Transformer Flexible Power Meters Long Lifespan

10A-10KA Rogowski Coil Current Transformer Flexible Power Meters Long Lifespan

  • 10A-10KA Rogowski Coil Current Transformer Flexible Power Meters Long Lifespan
  • 10A-10KA Rogowski Coil Current Transformer Flexible Power Meters Long Lifespan
  • 10A-10KA Rogowski Coil Current Transformer Flexible Power Meters Long Lifespan
10A-10KA Rogowski Coil Current Transformer Flexible Power Meters Long Lifespan
Product Details:
Place of Origin: China
Brand Name: Chuangyin
Certification: Test Report
Model Number: CY-RCT02-190
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: Carton packing for one sets, one set including three piece with Components
Delivery Time: Within 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 36,000,00pcs per year
Contact Now
Detailed Product Description
Virtue: Flexible Net Weight: Deft
Linearity: Roundness Installation: Easy, Quick
Accessories: Smart Logger Dimensions: 190mm
High Light:

flexible current transformer

,

flexible ct



Clamp-on Rogowski Coil Current Transformer Red/Black Flexible Power Meters



General data:

.Ambient operating temp:-20……+70℃

.Ambient storage temp.:-25……+75℃

.Standard Safety:IEC 61010-1:2001,600V CATⅢ





Specification: unit :mm

Dimensions

CY-RCT01-190

Window A 120
Coil DB B 145
Coil Length C 400
Output connection

UL2586-ESB2*24AWG L=150cm(as required)

Coax terminated with safety male BNC connector L =300cm(as required)

UL2586-esb2*24AWG L=150cm(as required)with integrator



Electrial Parameter:

Type Data CY-RCT02-190 CY-RCT02-190
Current Range 10A-10KA 10A-6000A
Frequency 25Hz-20kHz 45Hz-600Hz
Output Voltage Rated curent 1000A 1000A,1500A,2000A,3000A
50Hz 50Mv AC 333mV
1mV/A
Max output / 3.0V AC max
Accuracy <1%@25ºC(45-65Hz) <1%@25ºC(45-65Hz)
Phase error <60@25ºC(45-65Hz) <60@25ºC(45-65Hz)
Output sensitivity ±2%Max (No Calibration) 1%
±0.5%@25ºC(with Calibration
Linearity error ±0.2%(10%-100%IIn) ±0.2%
Position Sensitivity ±0.2% ±2%
External Influence ±0.2% Max ±1.5%Max
Power Supply / 10-30VDC,30m A MAX.





Remarks:
Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

The quality is assurance, the reasonable price, welcome to order, ordering or the proxy.



Dimension:

10A-10KA Rogowski Coil Current Transformer Flexible Power Meters Long Lifespan 0



Position Sensitivity:



10A-10KA Rogowski Coil Current Transformer Flexible Power Meters Long Lifespan 1
