| Place of Origin: | China |
| Brand Name: | Chuangyin |
| Certification: | Type Test Report |
| Model Number: | LSZ107 8 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Carton packing for one sets, one set including three piece with Components |
| Delivery Time: | Within 7 days |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram, D/P, D/A, |
| Supply Ability: | 1000pcs/week |
| Features: | Bottom Has Installation Inserts For Fixation | Application: | For GIS |
|---|---|---|---|
| Technical Data: | IEC 60044-1/ IEC 61869-1&2 | Power Frequency Witnstand Voltage: | 3kv |
| Rated Frequency: | 50/60HZ | Package: | 3pcs/Plywood415*235*405mm |
| High Light: | ct current transformer,ring type current transformer |
||

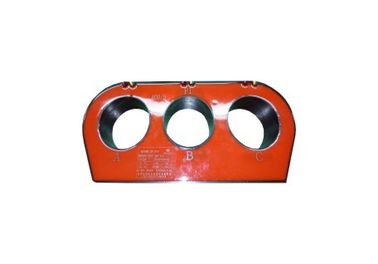

LSZ Instrument Current Transformer, Three Phase Rated Secondary Current 5A,1A
The three-phase CT is full-enclosed in the flame retardant plastic shells, primary bushing or cable can pass through the Inner hole, bottom has Installation Inserts for fixation. It Is simple and shortcut, Is suitable for measuring current, signal collection and protective relaying In the medium voltage power system of bushing or cable etc.
| Purpose | Measuring current transformer | Protective current transformer | Double winding current transformer | ||||||
|
Rated Transformation Ratio |
Accuracy class and rated burden (VA) cos =0.8 |
||||||||
| 0.5 | 1 | 10P10 | 0.5 | 10P1010P5 | |||||
| 150/5 | 1 | 1 | |||||||
| 200/5 | 1 | 2.5 | 1.5 | 1.5 | 1.5 | ||||
| 300/5 | 2.5 | 5 | 2.5 | 1 | 2.5 | ||||
| 400/5 | 5 | 7.5 | 5 | 2.5 | 2.5 | ||||
| 500/5 | 5 | 7.5 | 5 | 2.5 | 5 | ||||
| 600/5 | 5 | 7.5 | 5 | 5 | 5 | ||||
