Place of Origin: | China |
Brand Name: | Chuangyin |
Certification: | Type test report |
Model Number: | LXZK110-C |
Minimum Order Quantity: | 1 |
---|---|
Price: | negotiable |
Packaging Details: | Carton packing for one sets, one set including three piece with Components |
Delivery Time: | Within 7 days |
Payment Terms: | T/T, L/C, Western Union, MoneyGram, D/P, D/A, |
Supply Ability: | 1000pcs/week |
Attribute: | Protective Relaying Equipment | Pack: | 4pcs/Plywood =760*675*425mm |
---|---|---|---|
Net Weight: | 4KG/pcs | Place: | Indoor |
Class: | Zero-Sequence | Function: | Realiza Protective Or Monitoring |
High Light: | ct current transformer,instrument potential transformer |

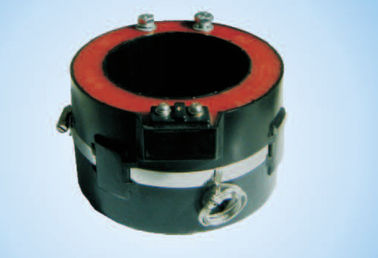

LXZK110 Instrument Current Transformer, adopts stainless steel metal, easy to installation
Match with signal equipment and protective relaying equipment when power system produce zero sequence earthing current,act the equipment components to realize protective or monitoring function.
It adopts stainless steel metal shell and easy installation save much room,many specs' high accuracy zero sequence CT are power system (such as neutral earthing, big current earthing,small current earthing or arc suppression coil earthing) etc.
Specification:
Model | LXZK110-C | LXZK110-P | |||
Purpose | Measuring current transformer | Protective current transformer | |||
Rated Primary current |
Accuracy class and rated burden ( VA ) COS ①=0.8 |
||||
0.5 | 1 | 3 | 10P10 | 10P5 | |
30 | 1 | 1 | |||
50 | 1.5 | 1.5 | |||
75 | 2.5 | 2.5 | |||
100 | 2.5 | 2.5 | |||
200 | 2.5 | 5 | 2.5 | 3.75 | |
300 | 5 | 3.75 | |||
400 | 5 | 5 | 5 | ||
500 | 5 | 5 | |||
600 | 5 | 5 |
note: Upon request we are glad to offer Transformer according to other technical specs
Outline Drawing:
