| Place of Origin: | China |
| Brand Name: | Chuangyin |
| Certification: | Type Test Report |
| Model Number: | LXZK2-120 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Carton packing for one sets, one set including three piece with Components |
| Delivery Time: | Within 7 days |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram, D/P, D/A, |
| Supply Ability: | 1000pcs/week |
| Construction: | Two Semi Spheres And Secondary Windings | Manufacture: | Excellent Epoxy Resin |
|---|---|---|---|
| Net Weight: | 179KG/4pcs | Installation Site: | Indoor |
| Type: | Fixed Cable CT | Rated Insulation Level: | 0.72/3KV |
| High Light: | ct current transformer,instrument potential transformer |
||

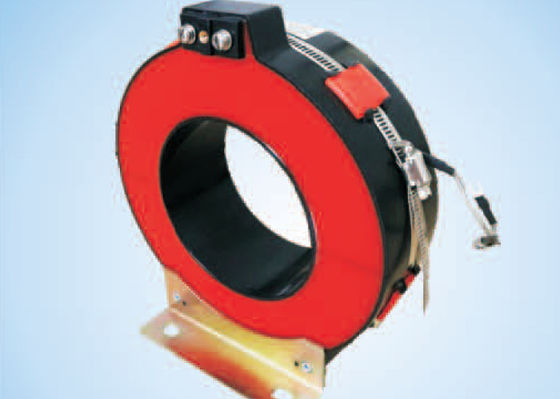

Instrument Current Transformer, Ring Main Unit C-GIS Fixed Cable CT
This current transformer consists of two semi spheres and secondary windings, adopted excellent epoxy resin with good performance of anti-flame. Split core CT has small size, light weight, and free of maintainace. Fixed with clips on the cable.Plastic and stainless steel clips are available.
Specification:
| Item | Specification | Unit | Data |
| 1 | Um | kV | 0.72 |
| 2 | Rated Insulation Level | kV | 0.72/3 |
| 3 | Rated Primary Current | A | 30- 600 |
| 4 | Rated Secondary Current | A | 1 or 5 |
| Model | LXZK2-120C | LXZK2-120P | |||
| Application | Measuring | Protection | |||
|
Rated Current Ratio |
Accuracy class and burden (VA) | ||||
| 0.5 | 1 | 3 | 10P10 | 10P5 | |
| 30/5 | 1 | 1 | |||
| 50/5 | 1.5 | 1.5 | |||
| 75/5 | 2.5 | 2.5 | |||
| 100/5 | 2.5 | 2.5 | |||
| 200/5 | 2.5 | 5 | 2.5 | 3.75 | |
| 300/5 | 5 | 3.75 | |||
| 400/5 | 5 | 5 | 5 | ||
| 500/5 | 5 | 5 | |||
| 600/5 | 5 | 5 | |||
Note: Upon request we are glad to offer Transformer according to other technical specs
Outline Drawing:
