| Place of Origin: | Shenzhen |
| Brand Name: | Chuangyin |
| Certification: | Kema,CE,SGS,TUV |
| Model Number: | JDZXJ1-12RC |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Carton packing for one sets, one set including three piece with Components |
| Delivery Time: | Within 7 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 36,000,00pcs per year |
| Construction: | Fully Enclosed Casting Insulation | Highest Voltage For Equipment: | 12KV |
|---|---|---|---|
| Termal Limit Output: | 300VA | Rated Primary Voltage: | 11√3KV |
| Technical Standard: | 0.2；0.5；1;0.2/0.2;0.2/0.5;0.2/6P;0.5/6P | Rated Insulation Level: | 12/28/75KV |
| Type: | Measuring Protection | ||
| High Light: | medium voltage potential transformer,single phase voltage transformer |
||

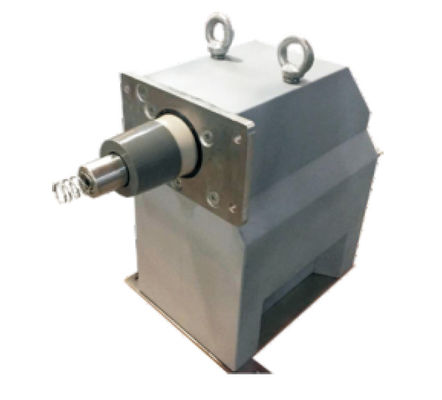

12kV Medium Voltage Transformer IEEE Pluge Single-Phase Metal Shell Type Electromagnetic Easy Installation transformer
1. Product Introduction:
Used indoor single phase or three phase AC circuit for measuring electric capacity, voltage and protective relaying with the frequency of 50Hz or 60Hz and rated voltage 11 kV.
The product adopts epoxy resin casting full-closed structure with low magnetism density and large creepage distance of external insulation The product has high reliability and maintenance free.
1. Installation site: indoor
2. Rated frequency 50160Hz
3. Load power factor. cos o =0.8 ( lagging)
4. Technical standard accords with IEC 60044-2
(IEC 61869-1&3)
| Type |
Rated primary voltage (kV) |
Rated secondary voltage (kV) | Accuracy classes combination |
Rated output (VA) |
Thermal limiting current (VA) |
Rated insulation level(kV) |
| JDZXJ1-12RC |
11/√3
|
0.11/√3 | 0.2 | 15 | 2000 |
12/28/75 |
| 0.5 | 50 | |||||
| 1 | 80 | |||||
| 0.11/√3/0.1/√3 | 0.2/6P(3P) | 15/100 | 300 | |||
| 0.5/6P(3P) | 50/100 | |||||
Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.
Outline drawing
