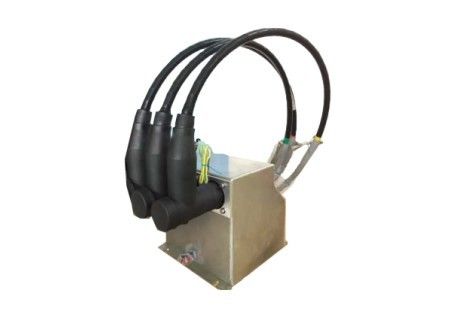

12kV MV Voltage Transformer IEEC Bushing Type Three Phase Metal Shell Type

12kV MV Voltage Transformer IEEC Bushing Type Three Phase Metal Shell Type

  • 12kV MV Voltage Transformer IEEC Bushing Type Three Phase Metal Shell Type
  • 12kV MV Voltage Transformer IEEC Bushing Type Three Phase Metal Shell Type
  • 12kV MV Voltage Transformer IEEC Bushing Type Three Phase Metal Shell Type
  • 12kV MV Voltage Transformer IEEC Bushing Type Three Phase Metal Shell Type
  • 12kV MV Voltage Transformer IEEC Bushing Type Three Phase Metal Shell Type
12kV MV Voltage Transformer IEEC Bushing Type Three Phase Metal Shell Type
Product Details:
Place of Origin: Shenzhen
Brand Name: Chuangyin
Certification: Kema,CE,SGS,TUV
Model Number: JSZV2-12RMC
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: Carton packing for one sets, one set including three piece with Components
Delivery Time: Within 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 36,000,00pcs per year
Contact Now
Detailed Product Description
Construction: Fully Enclosed Termal Limit Output: 600VA
Rated Primary Voltage: 11KV Accuracy: 0.2;0.5;1;0.2/0.2;0.2/0.5;0.2/6P;0.5/6P
Rated Insulation Level: 12/28/75KV Type: IEC Bushing
Frequency: High Frequency Quality: Stable Quality
High Light:

medium voltage transformer

,

medium voltage potential transformer

12kV Medium Voltage Transformer IEEC Bushing Type Three-Phase Metal Shell Type Competitive price High Accuracy​


1. Product Introduction:


The voltage transformer is epoxy resin casting and full-closed construction, the surface is covered by metal with more safety, match with IEC elbow connectors( EN50181 bushing), is widely used for measuring current, electric energy and protective relaying in the three phase power system with the frequency 50Hz or 60Hz and highest voltage for equipment 12kV.



Technical parameter

1. Rated primary voltage: 3 kV or 6 kV or 10kV or 11kV etc

2. Technical standard accords with IEC 60044-2(IEC 61869-1&3)

Rated primary

Voltage

(kV)

Rated secondary

Voltage

(kV)

Accuracy classes

combination

Rated output (VA)

Thermal limiting

Output

(VA)

Rated

Insulation level

(kV)

10

11

0.1

0.11

0.2 25 2×600 12/28/75
0.5 50
1 100

0.1/0.1

0.11/0.11

0.2/0.2 15/15 2×300/300
0.2/0.5 15/25

0.1/0.22

0.11/0.22

0.2/6P(3P) 20/600 2×600
0.5/6P(3P) 30/600


Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.



Outline drawing



12kV MV Voltage Transformer IEEC Bushing Type Three Phase Metal Shell Type 0
