Detailed Product Description
Highest Voltage For Equipment: 36KV Rated Frequency: 50/60HZ
Feature: Improve The Filth And Moisture Resistance Standard: IEC 60502.4
Proved: CE/TUV/SGS/KEMA Type: Autotransformer Type
High Light:

medium voltage potential transformer

,

single phase voltage transformer

36kV Medium Voltage Transformer Bushing Metallic Coating Touch Proof CE/TUV/SGS/KEMA Proved Potential Usage Metering​


1.Product Introduction:

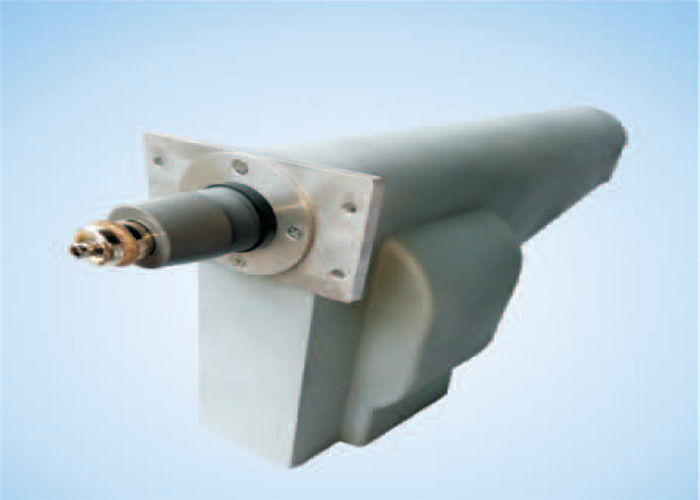

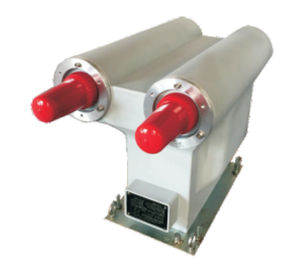

JDZX16-36RPC voltage transformer, is fully enclosed casting insulation structure, the primary winding, secondary winding and the annular core all coating in the epoxy resin casting, improve the filth and moisture resistance. Product’s plug design conform to standard IEC 60502.4. The
whole structure of product is shielding type, is widely used indoor for measuring current, electric energy and protective relaying In the Isolated neutral system with the frequency 50-60Hz and highest voltage for
equipment 36 kV.





Technical Data



1. Rated primary voltage: 35/√3
2. Rated secondary voltage: 100/√3V. 100/√3/100/3 V
3. Rated voltage of residual voltage windings: 100/3V, 110/3V, 11513V, 120/ 3V
4. Burden power factor.
5. Standards: cos =0.8(Lagging )
                      IEC60044-2.2003 o r I EC61 669-1 8 3





Type

Rated primary

voltage (kV)

Rated secondary voltage (kV) Accuracy classes combination

Rated output

(VA)

Thermal limiting current

(VA)

Rated insulation level(kV)
JDZX16-36RPC



33/√3

34.5/√3



0.11//√3 0.2 20 300



36/70/170



0.5 50
1 80
0.11/√3/0.11/3

0.2/6P(3P)   300
25/50

0.5/6P(3P) 30/50

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.





Outline drawing
