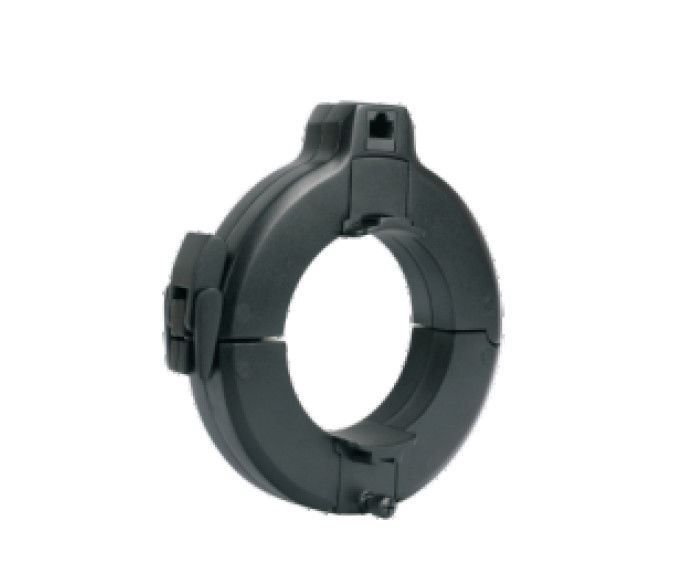

Name: Epoxy Reson Instrument Current Transformer / Rogowski Coil Current Sensor
Brand: Chuangyin
SKU: CY-RCTY04
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (132 reviews)

Home Products Instrument Current Transformer

Epoxy Reson Instrument Current Transformer / Rogowski Coil Current Sensor

Product Details:

Place of Origin:	Shenzhen
Brand Name:	Chuangyin
Certification:	KEMA,
Model Number:	CY-RCTY04

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negetiable
Packaging Details:	36,000,00pcs per year
Payment Terms:	L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability:	36,000,00pcs per year

Contact Now

Detailed Product Description

Insulation Level:	0.66/3kv/(0.72/3kv)	Material:	Epoxy Reson
Accuracy:	＜1%	Standard:	IEC 60044-8
Application:	≤0.72kV Low Voltage Noninsulated Busbar	Type:	Rogoski Coil
High Light:	instrument potential transformer , ring type current transformer

Rogowski Coil Current Sensor / Instrument Current Transformer

1 Apply to
«24kV insulated cable busbar
≤0.72kV low voltage noninsulated busbar
2 Application
♦ Current sensor apply to current measurement of cable busbar & insulation bushing of low voltage I medium voltage C-GIS switchgear in smart grid ; ♦ Current sensor should be mounted on the insulated cable, shielded cable connector, or any other type of insulated conductor.

Features:

Rogowski coil current sensor provides a reliable alternative solution for protecting, measuring and monitoring medium voltage distribution networks. Its high performance and compact size are more suitable for medium voltage switch optimization design, thereby improving the protection, measurement and monitoring functions.

♦ Excellent linearity, high precision, stable and reliable;

♦ No need field calibration.

♦ Without high voltage danger when open circuit at secondary.

♦ No iron core saturation or damage in the event of overload;

♦Open-close structure, flexible, lightweight, beautiful appearance;

♦Small size and lightweight, suitable for new installation and remodeling;

4.Technical Data:

Model CY-RCTY04

Max. system voltage (cable busbar) 24 kV

Insulation level 0,66/3kV (0,72/3kV)

Frequency 50/60Hz

Output ratio 85mVAC@1000A (50Hz)

102mV AC@1000A (50Hz)

Accuracy <1%

Phase error <60’

Output sensitivity error error ±2% Max( before debug)

Linearity error ±0.5% @25°C( after debug)

±0.2% (10%-100%l1n)

Conductor orientation influence 1 %(90°~270°). ±2%(0°45°315°)

Burden (load resistance) >10kQ±2% (*)

Secondary output connection type RJ 45

Standard I EC 60044-8

5.Dimension:

Epoxy Reson Instrument Current Transformer / Rogowski Coil Current Sensor 0
