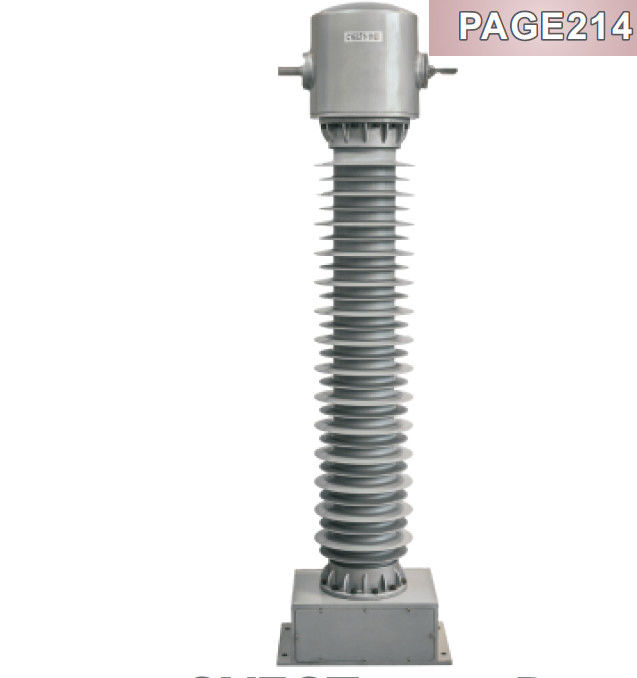

Name: 110 KV IEC60044-8 Electric Digital Current Transformer 50hz / 60hz
Brand: Shenzhen Chuangyin Co., Ltd.
SKU: CYECT1-110D
Price: 225.00 USD
Availability: InStock

Home Products Instrument Current Transformer

110 KV IEC60044-8 Electric Digital Current Transformer 50hz / 60hz

Product Details:

Place of Origin:	Shenzhen
Brand Name:	Chuangyin
Certification:	KEMA,SGS,TUV,UL
Model Number:	CYECT1-110D

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negetiable
Packaging Details:	36,000,00pcs per year
Payment Terms:	L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability:	36,000,00pcs per year

Contact Now

Detailed Product Description

Insulation Level:	126/200/450kV	Ceertificate:	KEMA,SGS,TUV,UL
Installation Site:	Outdoor	Frequency:	50hz/60hz
Ambient Temperature:	-25℃-50℃	Ambient Humidity:	≤RH95%
Highlight:	instrument potential transformer , ring type current transformer

IEC60044-8 Digital Output Electric Instrument Current Transformer

1 Product introduction:

The products accord with standard IEC60044-8, IEC61850-

9, digital output can expediently match with the electric instrument, digital measure and protective equipment, and can meet customer’ s other special requirements.

2. Technical Data:

1. Rated primary voltage: 110 kV

2. Rated primary current: 50-3150A

3. Rated digital output: 0x2D41 (measure) OxOICF(protection)

4. Accuracy for measuring winding: 0.2

5. Accuracy for protection winding: 5TPE/5P20-50

6. Rated insulation level: 126/200/450kV

7. Rated short time thermal current: 50-200:1501pr, 300-2000A :31.5kA/1 S

8. Rated dynamic current: 50-200A : 375Ipr, 300-2000A :80kA

9. Ambient temperature: -25℃-50℃

10. Ambient humidity: ≤RH95%(25-25℃ )

11. Altitude: 2000m( Can devise according to customer’ s requirement)

12. Installation site: outdoor

3. Outline Drawing:

110 KV IEC60044-8 Electric Digital Current Transformer 50hz / 60hz 0
