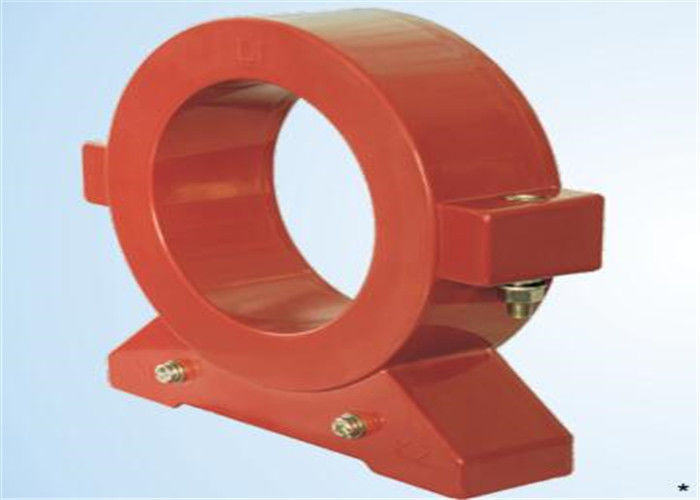

Dry type Zero Sequence Split Core Current Transformer Residual Current Protection CY-LXK(Z)

CY-LXK(Z)​ Zero sequence split core type Current transformer,residual curretn protection

1 . Type Description

2. Working Circumstance and Installation Condition

• Ambient Temperature: -10℃~+60℃ Daily average temperature below +40℃
• Ambient Humidity: RH≤85%
• Altitude: ≤1000m
• Atmosphere: No conductive dust or metal, no corrosive gas or mildew.

3. Main Feature

• Voltage: 0.38-66kV
• Circle frequency: 50Hz
• L1 is entering side of current transformer, K1 is secondary out way.
• More specific data pis see below Sheets

4.Installation

• Installed CT before electrical circle layout, circle line must penetrate internal circle of Cts.
• Split CTs can install by anytime, with follow step:
1 .Disassembling clips K1 & K2.
2.Releasing 6 screws on the top of CT, and separating CT in Two parts
3.Surround CT on the line, clear two connecting interface, spread with anti-rust oil,then tight up those 6 screws, for keep best performance keep separated terminals well connected.
4. Clip on K1 &K2
5. Keep split CTs with origin.

Remarks: Circuit line must penetrate CT with grounding.

5. Custom Design
With increasing market demand for zero type GTs in difference shape, we may otter custom design service for all clients.

6. Order Instruction
• Model No. Inner Hole Dimension(mm)
• Rated current ratio
• Secondary Loading Capacity or loading resistance
• Accuracy Classes
• Protective level

7. Outline drawing and dimension
