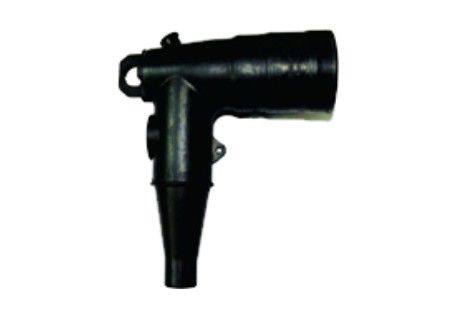

Sepatrable Class Loadbreak Elbow Connector 200 A 25 KV IEEE Standard 386

Product Details:

Place of Origin:	China
Brand Name:	CY-Group
Certification:	KEMA CE ISO SGS TUV UC3
Model Number:	CYS-A(S)ZT(01)-25/200

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	NEGOTIABLE
Packaging Details:	Plymood
Delivery Time:	3-8 days
Payment Terms:	L/C, TT,D/A,D/P
Supply Ability:	6000000pcs/year

Contact Now

Detailed Product Description

Material:	RUBBER	Voltage Class:	25 KV
Voltage Rating:	15.2/26.3 KV	Rated Current:	200 A
AC Withstand Voltage 5min:	54 KV	DC Withstand Voltage 15min:	48 KV
Partial Discharge:	20 KV, ≤10 PC	BIL:	125 KV
Thermal Current:	10 KA, 0.6 S	Dynamic Current:	20 KA, 10 Ms
Cable Section:	35 To 120mm2
High Light:	plastic tee connector , straight connector

Sepatrable Connector 200 A 25 kV Class Loadbreak Elbow Connector

Application

Chuangyin® Loadbreak Elbow Connector is widely applicable for connecting underground XPLE cable to packaged substation, RMU, cable branch box, buried transformer and leads of other HV equipments equipped with loadbreak bushings, junctions, or connectors in 200 A power network.

Cable section: 35 to 120mm²

The interface complys with IEEE standard 386, 15.2/26.3 kV, 200 A loadbreak design.

Features

Made of high quality EPDM rubber

Fully shielded and submersible

With/Without test point

100% factory tested

In compliance with IEEE standard 386

Construction

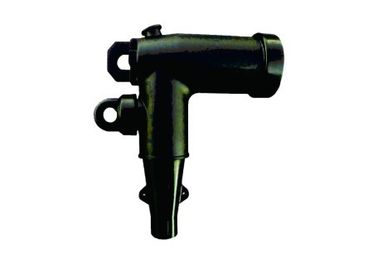

Sepatrable Class Loadbreak Elbow Connector 200 A 25 KV IEEE Standard 386 0

1. Insulating Layer

2.Operating Eye

3. Semi-conducting Insert

4. Semi-conducting Shield

5. Probe

6. Lug

Technical Data

Item	Parameters
Voltage Class	25 kV
Voltage Rating	15.2/26.3 kV
Rated Current	200 A
AC Withstand Voltage 5min	54 kV
DC Withstand Voltage 15min	48 kV
Partial Discharge	20 kV, ≤10 pC
BIL	125 kV
Thermal Current	10 kA, 0.6 s
Dynamic Current	20 kA, 10 ms
Cable Section	35 to 120mm²

Kit Contents

Elbow Connector Wipers

Lug Silicone Grease

Special Wrench Installation Instruction

Probe Certificate

Ordering Instructions

Part Number	Cable Section (mm²)	Diameter over Insulation (mm)	Code
CYS-A(S)ZT(01)-25/200-25	25	16 to 17.8	A
CYS-A(S)ZT(01)-25/200-35	35	17 to 19	B
CYS-A(S)ZT(01)-25/200-50	50	18 to 20	B
CYS-A(S)ZT(01)-25/200-70	70	20 to 21.4	C
CYS-A(S)ZT(01)-25/200-95	95	21.6 to 23.1	C
CYS-A(S)ZT(01)-25/200-120	120	23 to 24.6	D
